Male Stud Non Return Valve with Elastomer Seal - Metric Parallel, B3 Ring
Male Stud Non Return Valve with Elastomer Seal - Metric Parallel, B3 Ring
SKU:VAL-c74b3e
Male Stud Non Return Valve for hydraulic systems. Stainless steel, 250 bar, 8.0mm tube diameter, M12x1.5 thread size.
Regular price
$39.99
Regular price
Sale price
$39.99
Unit price
per
Initiate Order
Male Stud Non Return Valve with Elastomer Seal - Metric Parallel, B3 Ring
$39.99
Quantity: 1
Claim Your Seller Account
Male Stud Non Return Valve with Elastomer Seal - Metric Parallel, B3 Ring
$39.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.

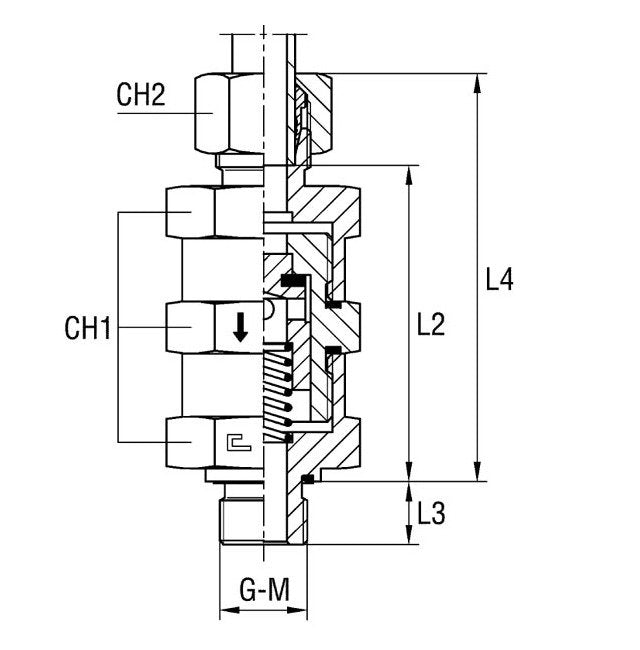

The Male Stud Non Return Valve with Elastomer Seal is designed for light duty applications with a nominal operating pressure of 250 bar. Crafted from stainless steel, this valve features precise dimensions to fit tube diameters of 8.0mm, M-thread size of 12x1.5, and a diameter pass of 4mm. With dimensions L2 of 53mm, L3 of 12.0mm, L4 of 67.5mm, CH1 of 19.0mm, and CH2 of 17.0mm, this valve ensures reliable performance and durability in hydraulic systems.
Product Specifications
Specifications Ch1
19.0 mm
Specifications Ch2
17.0 mm
Specifications Diameter Pass
4 mm
Specifications L2
53 mm
Specifications L3
12.0 mm
Specifications L4
67.5 mm
Specifications Material
Stainless Steel
Specifications M Thread Size
12x1.5
Specifications Nominal Operating Pressure
250 bar
Specifications Pressure
Light Duty
Specifications Tube Diameter
8.0 mm
Category 6
Male Stud Non Return Valve with Elastomer Seal Thread Metric Parallel
