Male Stud Non Return Valve with Elastomer Seal Metric Parallel - Heavy Duty
Male Stud Non Return Valve with Elastomer Seal Metric Parallel - Heavy Duty
SKU:FIT-7acaac
Reliable Male Stud Non Return Valve for hydraulic systems, offers heavy-duty performance at 240 bar.
Regular price
$59.99
Regular price
Sale price
$59.99
Unit price
per
Initiate Order
Male Stud Non Return Valve with Elastomer Seal Metric Parallel - Heavy Duty
$59.99
Quantity: 1
Claim Your Seller Account
Male Stud Non Return Valve with Elastomer Seal Metric Parallel - Heavy Duty
$59.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.
The Male Stud Non Return Valve with Elastomer Seal Metric Parallel offers a reliable hydraulic solution for both heavy-duty and light-duty applications. Designed with a robust carbon steel body, this valve ensures a nominal operating pressure of 240 bar, meeting stringent industry standards. Its unique Thread Metric Parallel configuration and JIC 37° Thread compatibility provide versatility and easy installation. Trust in this valve for dependable performance and secure fluid flow control in diverse hydraulic systems.
Product Specifications

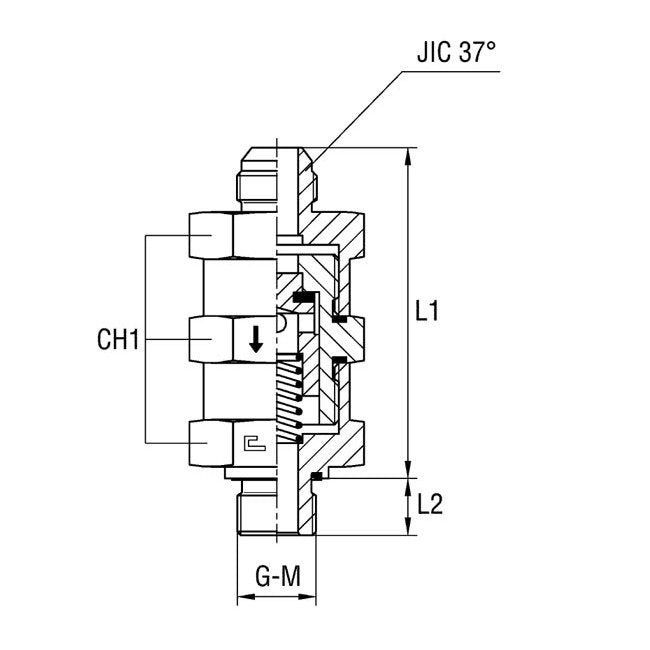

Specifications Ch1
70 mm
Specifications Diameter Pass
29 mm
Specifications Jic 37 Thread
1 7/8-12
Specifications L1
114.5 mm
Specifications L2
22 mm
Specifications Material
Carbon Steel
Specifications M Thread Size
48x2
Specifications M Tube Diameter
38 mm
Specifications Nominal Operating Pressure
240 bar
Specifications Pressure
Extra Light Duty | Heavy Duty | Light Duty
Specifications W Tube Diameter
1 1/2 in
