Male Stud Non Return Valve with Elastomer Seal - Metric Parallel Thread

Name: Male Stud Non Return Valve with Elastomer Seal - Metric Parallel Thread
Brand: World Wide Metric, Inc.
SKU: VAL-aee0a5
Price: 49.99 USD
Availability: OutOfStock

SKU:VAL-aee0a5

Durable Male Stud Non Return Valve with Elastomer Seal for hydraulic systems. Operates at 160 bar pressure.

$49.99

Sale

Quantity

Delivery via Maden

Expect your order to arrive on time.

Secure Payments

All orders are processed through a secure, PCI-compliant checkout.

View full details

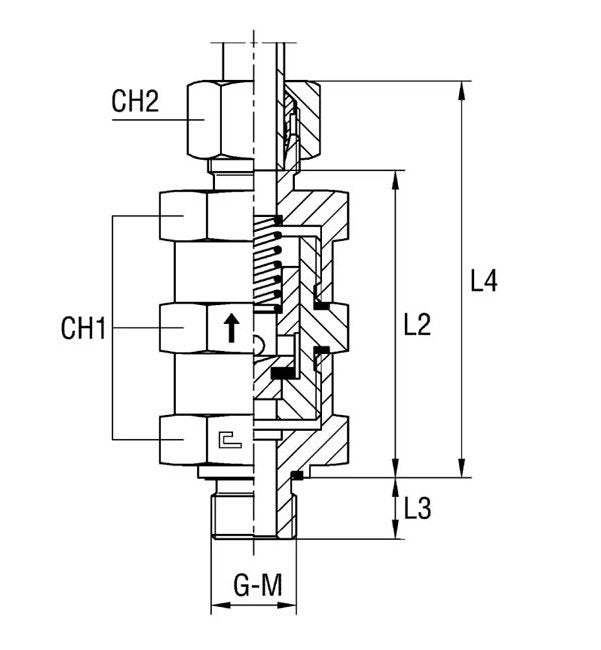

The Male Stud Non Return Valve with Elastomer Seal offers reliable light-duty performance with a Nominal Operating Pressure of 160 bar. Constructed with Carbon Steel, this valve ensures durability and precision. Featuring a Tube Diameter of 18.0mm and compatibility with M - Thread Size 22x1.5, it meets the stringent requirements of hydraulic systems. The design includes CH1 and CH2 dimensions for seamless integration, making it ideal for applications demanding efficiency and quality.

Product Specifications

Specifications Ch1

41 mm

Specifications Ch2

32 mm

Specifications Diameter Pass

11 mm

Specifications L2

64.5 mm

Specifications L3

14.0 mm

Specifications L4

80.5 mm

Specifications Material

Carbon Steel

Specifications M Thread Size

22x1.5

Specifications Nominal Operating Pressure

160 bar

Specifications Pressure

Light Duty

Specifications Tube Diameter

18.0 mm
