Male Stud Non Return Valve with Elastomer Seal - Metric Parallel Thread (10x1)
Male Stud Non Return Valve with Elastomer Seal - Metric Parallel Thread (10x1)
SKU:FIT-828f5e
High-quality stainless steel Male Stud Non Return Valve with Elastomer Seal, 250 bar pressure, precise dimensions for reliable hydraulic performance.
Regular price
$45.99
Regular price
Sale price
$45.99
Unit price
per
Initiate Order
Male Stud Non Return Valve with Elastomer Seal - Metric Parallel Thread (10x1)
$45.99
Quantity: 1
Claim Your Seller Account
Male Stud Non Return Valve with Elastomer Seal - Metric Parallel Thread (10x1)
$45.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.
The Male Stud Non Return Valve with Elastomer Seal features a robust design suitable for light-duty applications with a Nominal Operating Pressure of 250 bar. Constructed from high-quality stainless steel, this valve ensures durability and efficiency. With a Tube Diameter of 6.0mm and precise dimensions, it provides reliable performance. The Equipped B4 Ring enhances sealing effectiveness, making it a dependable choice for hydraulic systems.
Ready to Grow Without Cash Flow Constraints?

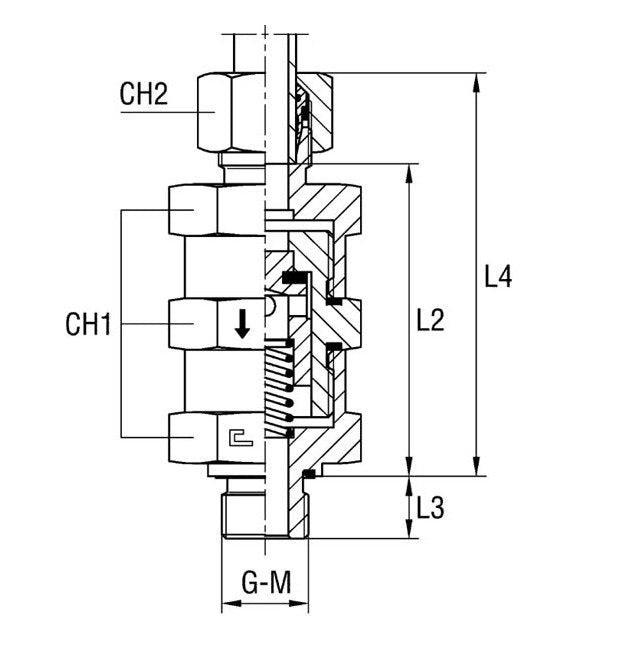

Product Specifications
Specifications Ch1
19.0 mm
Specifications Ch2
14 mm
Specifications Diameter Pass
4 mm
Specifications L2
53 mm
Specifications L3
8.0 mm
Specifications L4
67.5 mm
Specifications Material
Stainless Steel
Specifications M Thread Size
10x1
Specifications Nominal Operating Pressure
250 bar
Specifications Pressure
Light Duty
Specifications Tube Diameter
6.0 mm
