Male Stud Non Return Valve with Elastomer Seal - Metric Parallel Thread
Male Stud Non Return Valve with Elastomer Seal - Metric Parallel Thread
SKU:FIT-ccabe7
Durable Stainless Steel Male Stud Non Return Valve for hydraulic systems - 250 bar Pressure, Metric Parallel Thread
Regular price
$29.99
Regular price
Sale price
$29.99
Unit price
per
Initiate Order
Male Stud Non Return Valve with Elastomer Seal - Metric Parallel Thread
$29.99
Quantity: 1
Claim Your Seller Account
Male Stud Non Return Valve with Elastomer Seal - Metric Parallel Thread
$29.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.
The Male Stud Non Return Valve with Elastomer Seal offers reliable light-duty operation with a Nominal Operating Pressure of 250 bar. Crafted from durable Stainless Steel, it features a 12.0 mm Tube Diameter with precise 16x1.5 M-Thread Size, ensuring seamless integration into hydraulic systems. With a compact design and compliant with industry standards, this valve is a dependable choice for both consumer and institutional needs.
Ready to Grow Without Cash Flow Constraints?

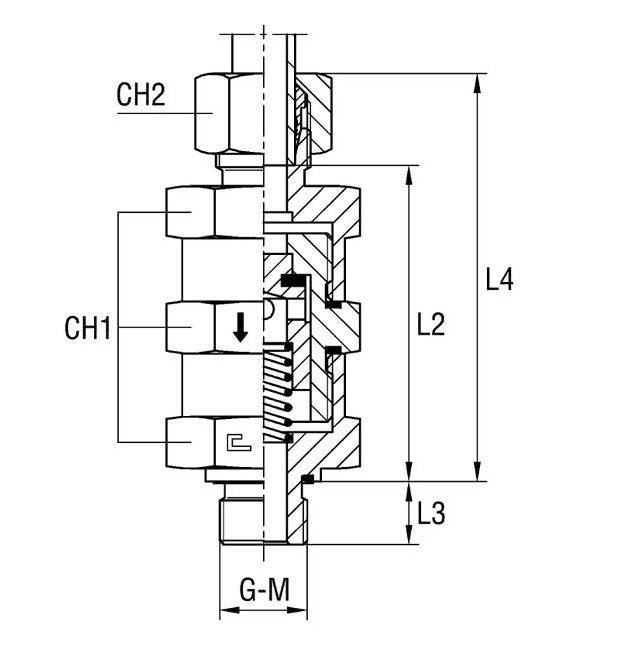

Product Specifications
Specifications Ch1
32 mm
Specifications Ch2
22 mm
Specifications Diameter Pass
8 mm
Specifications L2
60 mm
Specifications L3
12.0 mm
Specifications L4
74.5 mm
Specifications Material
Stainless Steel
Specifications M Thread Size
16x1.5
Specifications Nominal Operating Pressure
250 bar
Specifications Pressure
Light Duty
Specifications Tube Diameter
12.0 mm
