Male Stud Non Return Valve with Elastomer Seal - Metric Parallel Thread

Name: Male Stud Non Return Valve with Elastomer Seal - Metric Parallel Thread
Brand: World Wide Metric, Inc.
SKU: FIT-fd7b3f
Price: 49.99 USD
Availability: OutOfStock

SKU:FIT-fd7b3f

High-performance Male Stud Non Return Valve with Elastomer Seal for hydraulic systems. Ideal for varying pressure needs, durable and precise design.

$49.99

Sale

Quantity

Delivery via Maden

Expect your order to arrive on time.

Secure Payments

All orders are processed through a secure, PCI-compliant checkout.

View full details

The Male Stud Non Return Valve features a durable elastomer seal and metric parallel thread. Ideal for hydraulic applications, it offers Extra Light Duty, Heavy Duty, and Light Duty pressure options. With a nominal operating pressure of 240 bar and precise dimensions, this valve ensures reliable performance. Constructed from high-quality carbon steel, it is designed to meet the stringent requirements of institutional procurement.

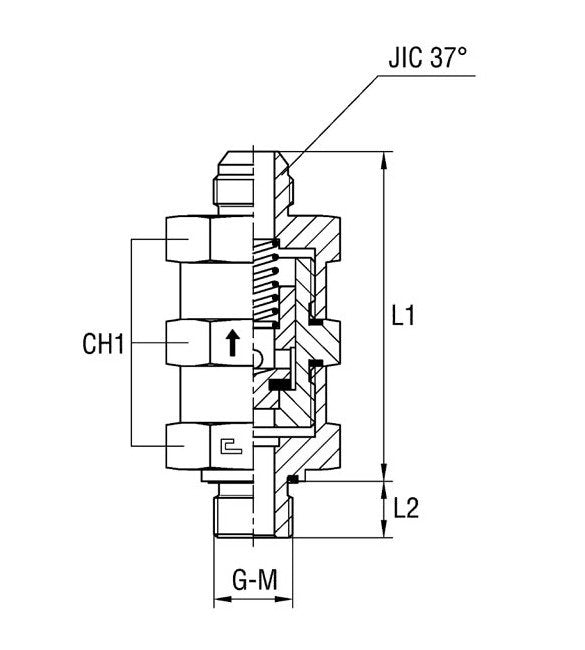

Product Specifications

Specifications Ch1

70 mm

Specifications Diameter Pass

29 mm

Specifications Jic 37 Thread

1 7/8-12

Specifications L1

114.5 mm

Specifications L2

22 mm

Specifications Material

Carbon Steel

Specifications M Thread Size

48x2

Specifications M Tube Diameter

38 mm

Specifications Nominal Operating Pressure

240 bar

Specifications Pressure

Extra Light Duty | Heavy Duty | Light Duty

Specifications W Tube Diameter

1 1/2 in

Male Stud Non Return Valve with Elastomer Seal - Metric Parallel Thread
