Male Stud Non Return Valve with Elastomer Seal - Metric Parallel Thread
Male Stud Non Return Valve with Elastomer Seal - Metric Parallel Thread
SKU:FIT-ace412
High-pressure Male Stud Non Return Valve with Elastomer Seal for reliable hydraulic system regulation.
Regular price
$34.99
Regular price
Sale price
$34.99
Unit price
per
Initiate Order
Male Stud Non Return Valve with Elastomer Seal - Metric Parallel Thread
$34.99
Quantity: 1
Claim Your Seller Account
Male Stud Non Return Valve with Elastomer Seal - Metric Parallel Thread
$34.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.
The Male Stud Non Return Valve with Elastomer Seal features a robust design suitable for heavy-duty hydraulic systems. With a nominal operating pressure of 240 bar and various tube diameters available, this valve ensures reliable performance and pressure regulation. Crafted from durable carbon steel, it meets stringent industry standards for durability and performance.
Ready to Grow Without Cash Flow Constraints?

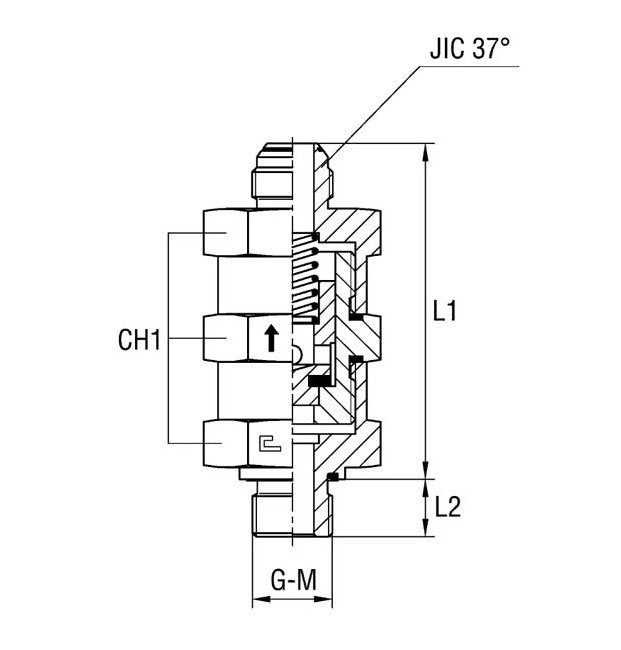

Product Specifications
Specifications Ch1
70 mm
Specifications Diameter Pass
25.5 mm
Specifications Jic 37 Thread
1 5/8-12
Specifications L1
111.3 mm
Specifications L2
20.0 mm
Specifications Material
Carbon Steel
Specifications M Thread Size
42x2
Specifications M Tube Diameter
30 mm | 32 mm
Specifications Nominal Operating Pressure
240 bar
Specifications Pressure
Extra Light Duty | Heavy Duty | Light Duty
Specifications W Tube Diameter
1 1/4 in
