Male Stud Non Return Valve with Elastomer Seal - Metric Parallel Thread, DIN Hydraulic Check Valve
Male Stud Non Return Valve with Elastomer Seal - Metric Parallel Thread, DIN Hydraulic Check Valve
SKU:VAL-ffbcd1
Reliable Male Stud Non Return Valve for hydraulic systems. Offers precision control with varying pressure options. Made of stainless steel for durability.
Regular price
$64.99
Regular price
Sale price
$64.99
Unit price
per
Initiate Order
Male Stud Non Return Valve with Elastomer Seal - Metric Parallel Thread, DIN Hydraulic Check Valve
$64.99
Quantity: 1
Claim Your Seller Account
Male Stud Non Return Valve with Elastomer Seal - Metric Parallel Thread, DIN Hydraulic Check Valve
$64.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.

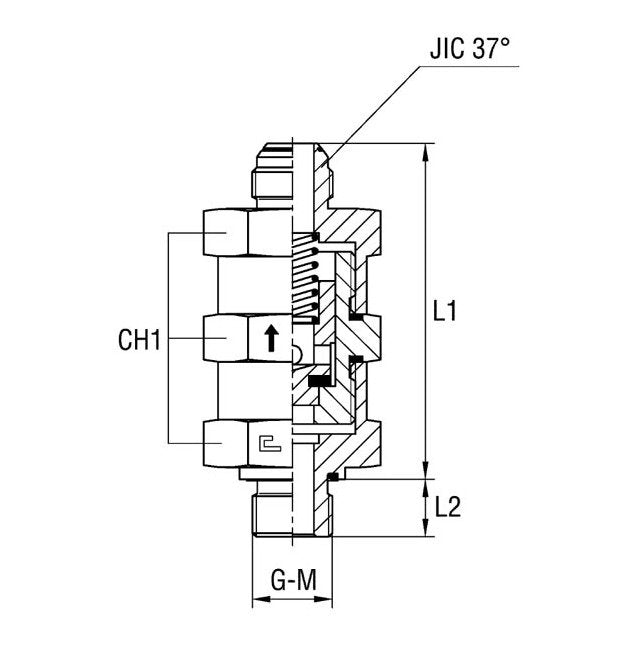

The Male Stud Non Return Valve with Elastomer Seal is a crucial component for hydraulic systems, offering reliability and precision. With pressure options for Extra Light Duty, Heavy Duty, and Light Duty applications, it ensures efficient flow control at a nominal operating pressure of 240 bar. Made of high-quality stainless steel, this valve features precise dimensions including M and W tube diameters, thread size, and JIC 37° threading, providing seamless integration in DIN hydraulic systems. Trust this valve for unparalleled performance and durability in hydraulic applications.
Product Specifications
Specifications Ch1
70 mm
Specifications Diameter Pass
25.5 mm
Specifications Jic 37 Thread
1 5/8-12
Specifications L1
111.3 mm
Specifications L2
20.0 mm
Specifications Material
Stainless Steel
Specifications M Thread Size
42x2
Specifications M Tube Diameter
30 mm | 32 mm
Specifications Nominal Operating Pressure
240 bar
Specifications Pressure
Extra Light Duty | Heavy Duty | Light Duty
Specifications W Tube Diameter
1 1/4 in
Category 6
Male Stud Non Return Valve with Elastomer Seal Thread Metric Parallel
