Male Stud Non Return Valve with Elastomer Seal Thread BSP - Hydraulic Check Valves
Male Stud Non Return Valve with Elastomer Seal Thread BSP - Hydraulic Check Valves
SKU:VAL-464a28
High-quality Male Stud Non Return Valve designed for hydraulic systems, featuring stainless steel construction and precise sealing for reliable performance.
Regular price
$59.99
Regular price
Sale price
$59.99
Unit price
per
Initiate Order
Male Stud Non Return Valve with Elastomer Seal Thread BSP - Hydraulic Check Valves
$59.99
Quantity: 1
Claim Your Seller Account
Male Stud Non Return Valve with Elastomer Seal Thread BSP - Hydraulic Check Valves
$59.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.

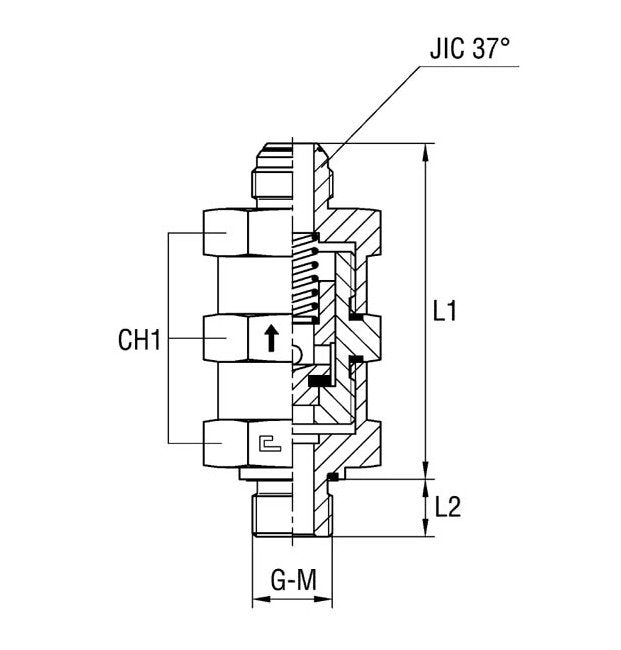

The Male Stud Non Return Valve with Elastomer Seal Thread BSP is designed for hydraulic systems requiring extra light, heavy, or light duty pressures up to 240 bar. Constructed with high-quality stainless steel, this valve ensures reliable performance with tube diameters of 30mm or 32mm. With precise dimensions and a JIC 37° thread, it provides secure sealing and smooth operation, meeting stringent DIN and hydraulic check valve standards.
Product Specifications
Specifications Ch1
70 mm
Specifications Diameter Pass
25.5 mm
Specifications G Thread Size
1 1/4
Specifications Jic 37 Thread
1 5/8-12
Specifications L1
111.3 mm
Specifications L2
20.0 mm
Specifications Material
Stainless Steel
Specifications M Tube Diameter
30 mm | 32 mm
Specifications Nominal Operating Pressure
240 bar
Specifications Pressure
Extra Light Duty | Heavy Duty | Light Duty
Specifications W Tube Diameter
1 1/4 in
Category 6
Male Stud Non Return Valve with Elastomer Seal Thread BSP Parallel
