Male Stud Non Return Valve with Elastomer Seal Thread BSP Parallel

Name: Male Stud Non Return Valve with Elastomer Seal Thread BSP Parallel
Brand: World Wide Metric, Inc.
SKU: FIT-27f932
Price: 49.99 USD
Availability: OutOfStock

SKU:FIT-27f932

Premium Male Stud Valve for hydraulic systems, withstands up to 350 bar pressure, made of Stainless Steel.

$49.99

Sale

Quantity

Delivery via Maden

Expect your order to arrive on time.

Secure Payments

All orders are processed through a secure, PCI-compliant checkout.

View full details

The Male Stud Non Return Valve with Elastomer Seal Thread BSP Parallel - O-ring Body is designed for reliable hydraulic applications, offering pressure options from Extra Light Duty to Heavy Duty. With a nominal operating pressure of 350 bar and precision engineering using Stainless Steel material, this valve ensures exceptional durability and performance. Its precise dimensions and compatibility with 10 mm tubes make it a versatile and efficient choice for hydraulic systems.

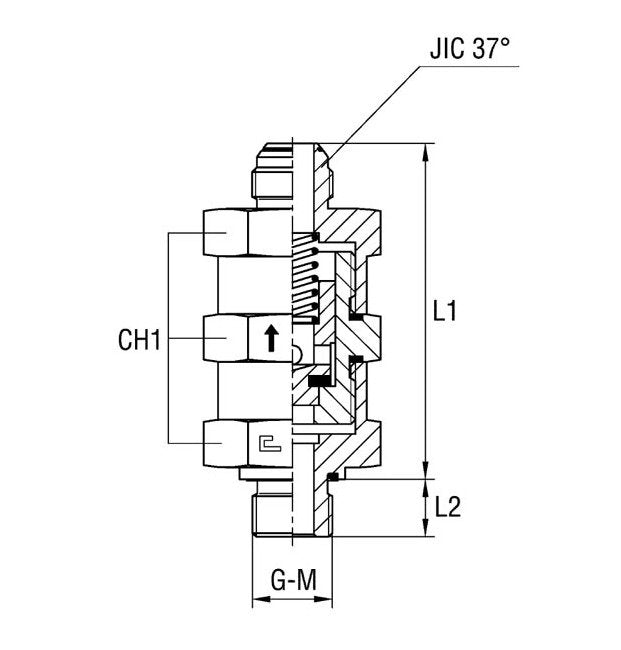

Product Specifications

Specifications Ch1

19.0 mm

Specifications Diameter Pass

4 mm

Specifications G Thread Size

1/4

Specifications Jic 37 Thread

9/16-18

Specifications L1

64.1 mm

Specifications L2

12.0 mm

Specifications Material

Stainless Steel

Specifications M Tube Diameter

10 mm

Specifications Nominal Operating Pressure

350 bar

Specifications Pressure

Extra Light Duty | Heavy Duty | Light Duty

Specifications W Tube Diameter

3/8 in
