Male Stud Non Return Valve with Elastomer Seal Thread BSP Parallel

Name: Male Stud Non Return Valve with Elastomer Seal Thread BSP Parallel
Brand: World Wide Metric, Inc.
SKU: FIT-1ff3d9
Price: 29.99 USD
Availability: OutOfStock

SKU:FIT-1ff3d9

Efficient hydraulic check valve with stainless steel construction and 350 bar nominal operating pressure. Ideal for Extra Light Duty to Heavy Duty applications.

$29.99

Sale

Quantity

Delivery via Maden

Expect your order to arrive on time.

Secure Payments

All orders are processed through a secure, PCI-compliant checkout.

View full details

The Male Stud Non Return Valve with Elastomer Seal Thread BSP Parallel - Standard Body is designed to provide efficient hydraulic check valve functionality. With a nominal operating pressure of 350 bar, it offers reliable performance in Extra Light Duty, Heavy Duty, and Light Duty applications. Constructed from high-quality stainless steel, this valve ensures durability and corrosion resistance. The precision engineering of this valve guarantees a pass diameter of 4 mm, making it a suitable choice for various hydraulic systems.

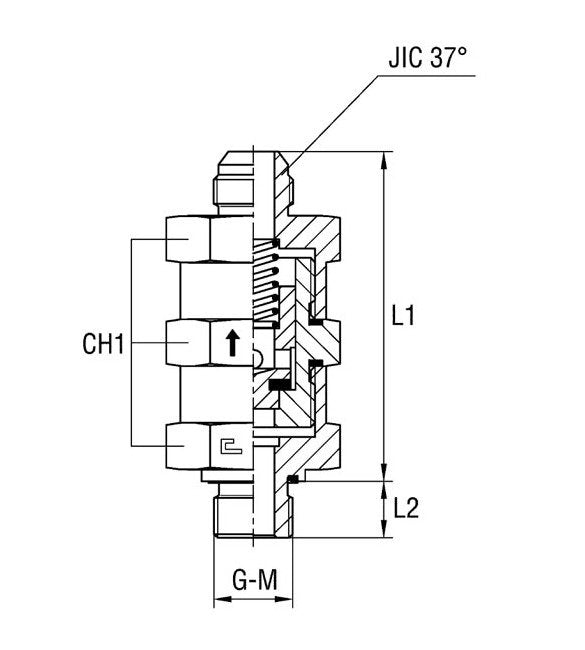

Product Specifications

Specifications Ch1

19.0 mm

Specifications Diameter Pass

4 mm

Specifications G Thread Size

1/8

Specifications Jic 37 Thread

1/2-20

Specifications L1

64.0 mm

Specifications L2

8.0 mm

Specifications Material

Stainless Steel

Specifications M Tube Diameter

8 mm

Specifications Nominal Operating Pressure

350 bar

Specifications Pressure

Extra Light Duty | Heavy Duty | Light Duty

Specifications W Tube Diameter

5/16 in

Male Stud Non Return Valve with Elastomer Seal Thread BSP Parallel
