Male Stud Non Return Valve with Elastomer Seal Thread BSP Parallel - Carbon Steel Body

Name: Male Stud Non Return Valve with Elastomer Seal Thread BSP Parallel - Carbon Steel Body
Brand: World Wide Metric, Inc.
SKU: FIT-0faa77
Price: 39.99 USD
Availability: OutOfStock

SKU:FIT-0faa77

Male Stud Non Return Valve with Elastomer Seal for reliable flow control in hydraulic systems.

$39.99

Sale

Quantity

Delivery via Maden

Expect your order to arrive on time.

Secure Payments

All orders are processed through a secure, PCI-compliant checkout.

View full details

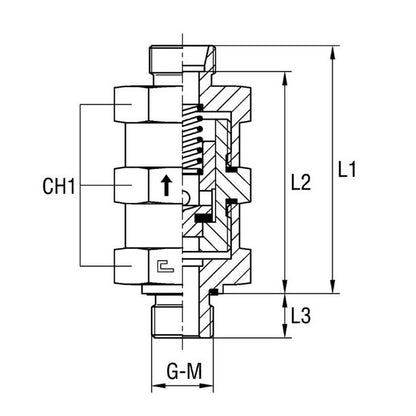

The Male Stud Non Return Valve features a carbon steel body suitable for light-duty applications with a nominal operating pressure of 100 bar. This valve ensures secure flow control with a G-thread size of 1 1/2 and a tube diameter of 42.0 mm. Its elastomer seal provides reliable sealing performance, while the compact design with dimensions L1: 103.0 mm, L2: 92 mm, and L3: 22.0 mm enhances installation versatility. Ideal for hydraulic systems, this valve offers a diameter pass of 29 mm, providing efficiency and durability.

Product Specifications

Specifications Ch1

70 mm

Specifications Diameter Pass

29 mm

Specifications G Thread Size

1 1/2

Specifications L1

103.0 mm

Specifications L2

92 mm

Specifications L3

22.0 mm

Specifications Material

Carbon Steel

Specifications Nominal Operating Pressure

100 bar

Specifications Pressure

Light Duty

Specifications Tube Diameter

42.0 mm

Male Stud Non Return Valve with Elastomer Seal Thread BSP Parallel - Carbon Steel Body
