Male Stud Non Return Valve with Elastomer Seal Thread - Hydraulic Check Valves
Male Stud Non Return Valve with Elastomer Seal Thread - Hydraulic Check Valves
SKU:FIT-596eff
Reliable Male Stud Non Return Valve for Hydraulic Systems - Extra Light Duty to Heavy Duty Pressure Options - Stainless Steel Construction
Regular price
$39.99
Regular price
Sale price
$39.99
Unit price
per
Initiate Order
Male Stud Non Return Valve with Elastomer Seal Thread - Hydraulic Check Valves
$39.99
Quantity: 1
Claim Your Seller Account
Male Stud Non Return Valve with Elastomer Seal Thread - Hydraulic Check Valves
$39.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.
The Male Stud Non Return Valve with Elastomer Seal Thread Metric Parallel - Standard Body is a vital component for hydraulic systems, offering Extra Light Duty, Heavy Duty, and Light Duty pressure variations to suit diverse operational needs. With a robust Stainless Steel construction, an operating pressure of 290 bar, and precise dimensions of 25 mm tube diameter, 1 in tube diameter, and 33x2 thread size, this valve ensures reliable performance and durability. Meeting stringent institutional standards, including Federal/DoD procurement standards and FAR compliance factors, this valve guarantees quality and reliability in hydraulic applications.

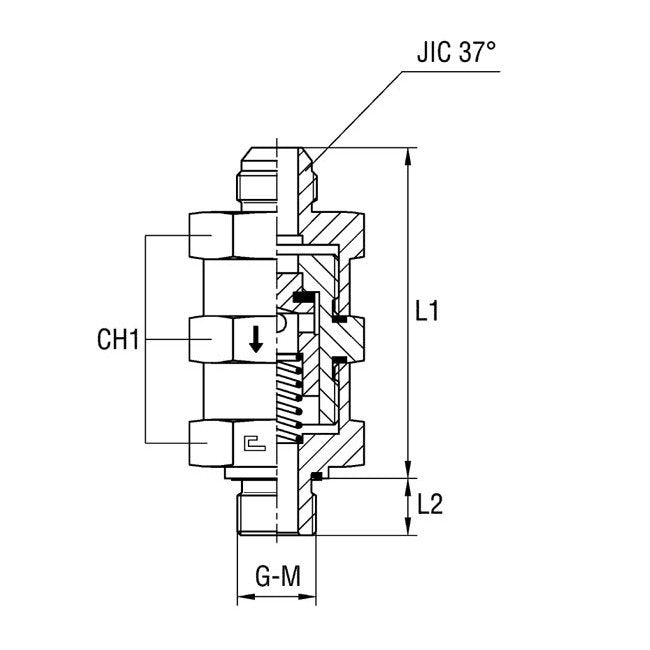

Product Specifications
Specifications Ch1
50 mm
Specifications Diameter Pass
18 mm
Specifications Jic 37 Thread
1 5/16-12
Specifications L1
92.1 mm
Specifications L2
18.0 mm
Specifications Material
Stainless Steel
Specifications M Thread Size
33x2
Specifications M Tube Diameter
25 mm
Specifications Nominal Operating Pressure
290 bar
Specifications Pressure
Extra Light Duty | Heavy Duty | Light Duty
Specifications W Tube Diameter
1 in
