Male Stud Non Return Valve with Elastomer Seal | Thread Metric Parallel
Male Stud Non Return Valve with Elastomer Seal | Thread Metric Parallel
SKU:FIT-36d80a
Durable Male Stud Non Return Valve for precise fluid control in hydraulic systems. Suitable for various pressure ranges. Compliant with industry standards.
Regular price
$49.99
Regular price
Sale price
$49.99
Unit price
per
Initiate Order
Male Stud Non Return Valve with Elastomer Seal | Thread Metric Parallel
$49.99
Quantity: 1
Claim Your Seller Account
Male Stud Non Return Valve with Elastomer Seal | Thread Metric Parallel
$49.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.

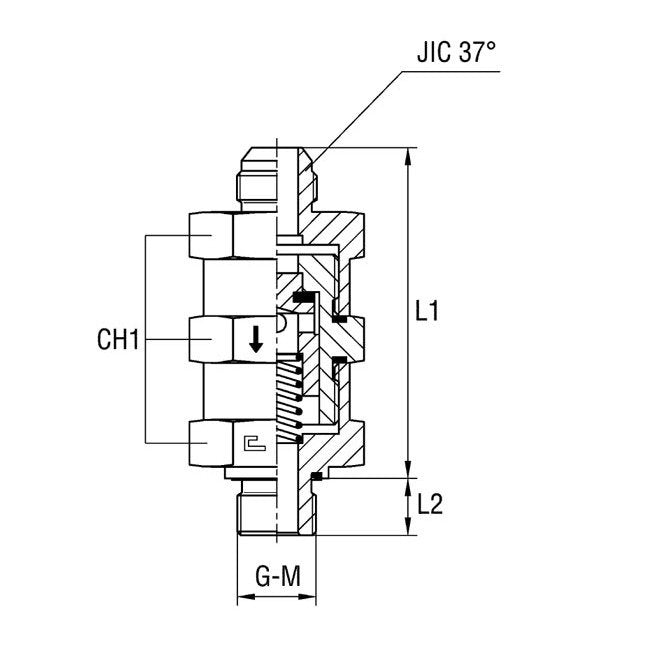

The Male Stud Non Return Valve with Elastomer Seal Thread Metric Parallel - Standard Body is a durable hydraulic check valve designed for a range of pressures from Extra Light Duty to Heavy Duty. With a Nominal Operating Pressure of 240 bar, this valve ensures reliable performance. Crafted from high-quality Carbon Steel, it features precise dimensions including M and W tube diameters, threaded size, and JIC 37° thread for seamless integration. Perfect for hydraulic systems in diverse applications, this valve offers efficient fluid control and meets stringent industry standards.
Product Specifications
Specifications Ch1
70 mm
Specifications Diameter Pass
25.5 mm
Specifications Jic 37 Thread
1 5/8-12
Specifications L1
111.3 mm
Specifications L2
20.0 mm
Specifications Material
Carbon Steel
Specifications M Thread Size
42x2
Specifications M Tube Diameter
30 mm | 32 mm
Specifications Nominal Operating Pressure
240 bar
Specifications Pressure
Extra Light Duty | Heavy Duty | Light Duty
Specifications W Tube Diameter
1 1/4 in
