Male Stud Non Return Valve with Elastomer Seal Thread Metric Parallel

Name: Male Stud Non Return Valve with Elastomer Seal Thread Metric Parallel
Brand: World Wide Metric, Inc.
SKU: FIT-3fdb1e
Price: 39.99 USD
Availability: OutOfStock

SKU:FIT-3fdb1e

High-quality Male Stud Non Return Valve for hydraulic systems. Stainless steel construction, 160 bar pressure. Reliable and durable.

$39.99

Sale

Quantity

Delivery via Maden

Expect your order to arrive on time.

Secure Payments

All orders are processed through a secure, PCI-compliant checkout.

View full details

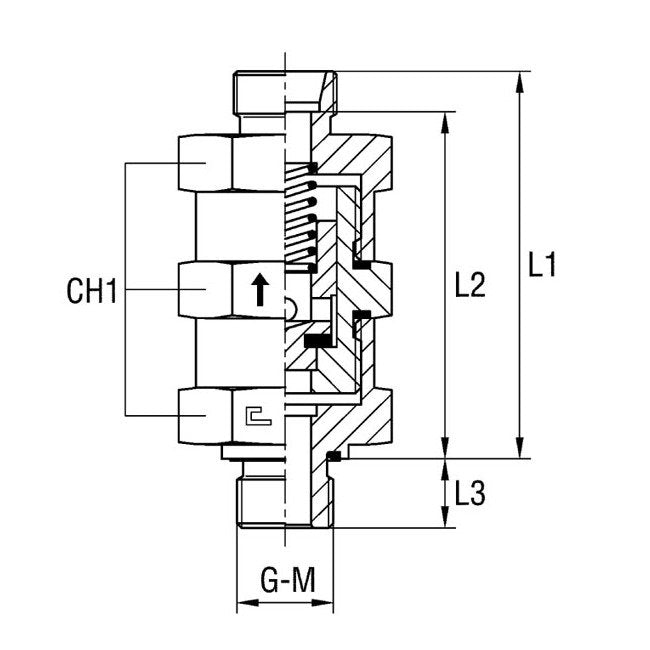

The Male Stud Non Return Valve with Elastomer Seal Thread Metric Parallel - Body Only is designed for light-duty hydraulic systems with a nominal operating pressure of 160 bar. Made of high-quality stainless steel, this valve ensures reliable performance and durability. With a tube diameter of 22mm and M-thread size of 26x1.5, it features precise dimensions including L1: 83mm, L2: 75.5mm, L3: 16.0mm, CH1: 50mm, and a diameter pass of 18mm. Compliant with industry standards, this valve combines quality construction with optimal functionality.

Product Specifications

Specifications Ch1

50 mm

Specifications Diameter Pass

18 mm

Specifications L1

83 mm

Specifications L2

75.5 mm

Specifications L3

16.0 mm

Specifications Material

Stainless Steel

Specifications M Thread Size

26x1.5

Specifications Nominal Operating Pressure

160 bar

Specifications Pressure

Light Duty

Specifications Tube Diameter

22 mm
