Male Stud Non Return Valve with O-ring - Hydraulic Check Valves
Male Stud Non Return Valve with O-ring - Hydraulic Check Valves
SKU:VAL-d4e656
High-quality Male Stud Non Return Valve with O-ring for hydraulic systems, pressure up to 240 bar, carbon steel construction.
Regular price
$99.99
Regular price
Sale price
$99.99
Unit price
per
Initiate Order
Male Stud Non Return Valve with O-ring - Hydraulic Check Valves
$99.99
Quantity: 1
Claim Your Seller Account
Male Stud Non Return Valve with O-ring - Hydraulic Check Valves
$99.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.
The Male Stud Non Return Valve with O-ring is a durable and reliable hydraulic check valve designed for applications requiring pressure up to 240 bar. Constructed from carbon steel, this valve features precise dimensions, a 1 7/8-12 thread size, and a 29 mm diameter pass to ensure optimal performance under heavy-duty conditions. With a tube diameter of 38 mm and JIC 37° thread compatibility, this valve meets stringent industry standards for hydraulic systems.

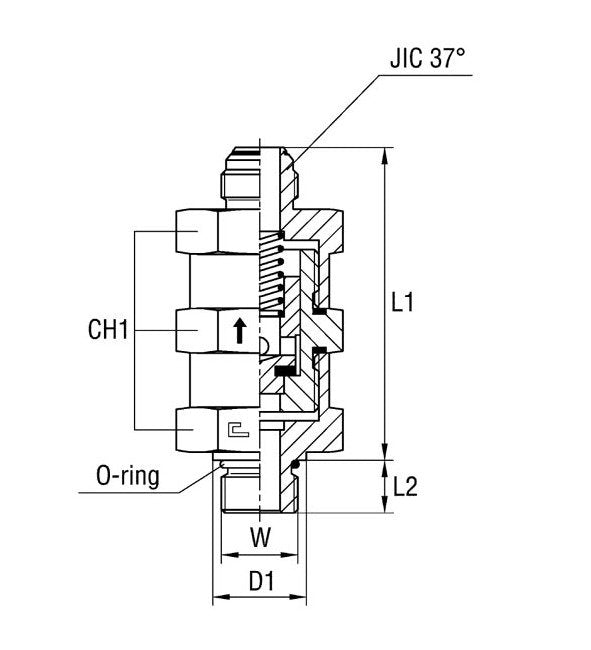

Product Specifications
Specifications Ch1
70 mm
Specifications D1
54.8 mm
Specifications Diameter Pass
29 mm
Specifications Jic 37 Thread
1 7/8-12
Specifications L1
111.5 mm
Specifications L2
15.1 mm
Specifications Material
Carbon Steel
Specifications M Tube Diameter
38 mm
Specifications Nominal Operating Pressure
240 bar
Specifications Pressure
Extra Light Duty | Heavy Duty | Light Duty
Specifications W Thread Size
1 7/8-12
Specifications W Tube Diameter
1 1/2 in
Category 6
Male Stud Non Return Valve with O-ring Thread UNF/UN-2A
