The Male Stud Non Return Valve with O-ring Thread UNF/UN-2A - Standard Body is designed for exceptional performance in hydraulic systems. With a durable stainless steel construction, it offers Extra Light Duty, Heavy Duty, and Light Duty pressure options, meeting stringent industrial standards. Operating at 350 bar nominal pressure, this valve ensures reliable flow control. Its precise dimensions and JIC 37° Thread guarantee seamless integration. Ideal for DIN Check Valve applications, this valve excels in maintaining fluid direction with precision and efficiency.

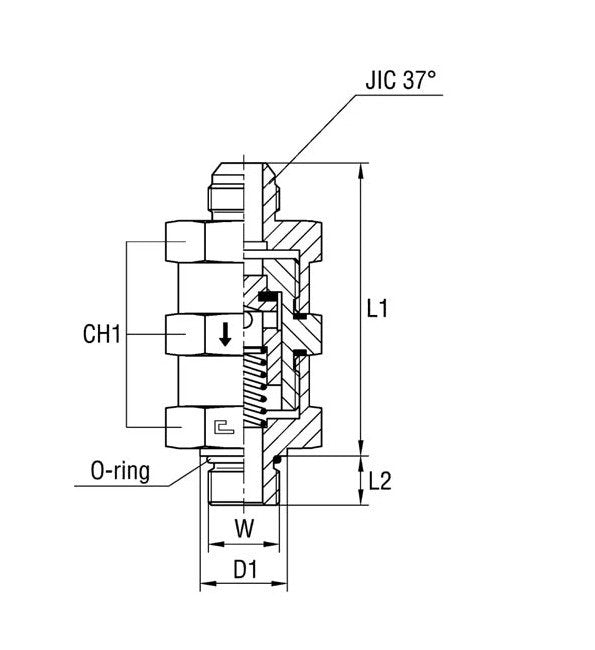

Product Specifications
Specifications Ch1
41 mm
Specifications D1
26.8 mm
Specifications Diameter Pass
11 mm
Specifications Jic 37 Thread
7/8-14
Specifications L1
76.3 mm
Specifications L2
12.7 mm
Specifications Material
Stainless Steel
Specifications M Tube Diameter
14 mm | 15 mm | 16 mm
Specifications Nominal Operating Pressure
350 bar
Specifications Pressure
Extra Light Duty | Heavy Duty | Light Duty
Specifications W Thread Size
7/8-14
Specifications W Tube Diameter
5/8 in
Category 6
Male Stud Non Return Valve with O-ring Thread UNF/UN-2A
