Male Stud Non Return Valve with O-ring Thread UNF/UN-2A
Male Stud Non Return Valve with O-ring Thread UNF/UN-2A
SKU:FIT-637c5c
Reliable Male Stud Non Return Valve with O-ring Thread and UNF/UN-2A Body, ideal for hydraulic systems.
Regular price
$49.99
Regular price
Sale price
$49.99
Unit price
per
Initiate Order
Male Stud Non Return Valve with O-ring Thread UNF/UN-2A
$49.99
Quantity: 1
Claim Your Seller Account
Male Stud Non Return Valve with O-ring Thread UNF/UN-2A
$49.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.
The Male Stud Non Return Valve features a durable Carbon Steel construction, with a Pressure rating ranging from Extra Light Duty to Heavy Duty, ensuring reliable performance under varying pressures. With a Nominal Operating Pressure of 240 bar, this valve is designed for efficiency and safety in hydraulic systems. The O-ring Body design and precise technical specifications make it suitable for a wide range of applications, meeting the stringent requirements of institutional and government buyers.
Ready to Grow Without Cash Flow Constraints?

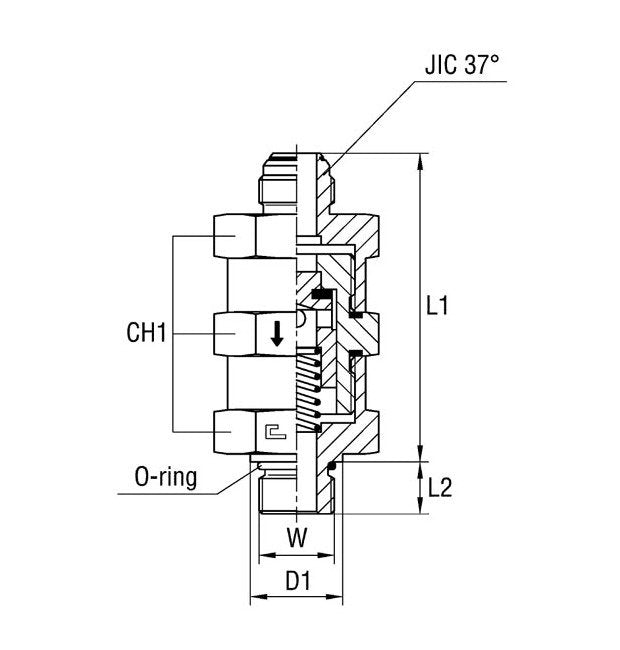

Product Specifications
Specifications Ch1
70 mm
Specifications D1
54.8 mm
Specifications Diameter Pass
29 mm
Specifications Jic 37 Thread
1 7/8-12
Specifications L1
111.5 mm
Specifications L2
15.1 mm
Specifications Material
Carbon Steel
Specifications M Tube Diameter
38 mm
Specifications Nominal Operating Pressure
240 bar
Specifications Pressure
Extra Light Duty | Heavy Duty | Light Duty
Specifications W Thread Size
1 7/8-12
Specifications W Tube Diameter
1 1/2 in
