Male Stud Non Return Valve with O-ring Thread UNF/UN-2A
Male Stud Non Return Valve with O-ring Thread UNF/UN-2A
SKU:FIT-65de82
High-quality stainless steel Male Stud Non Return Valve for hydraulic systems. Nominal operating pressure 400 bar. Reliable performance for heavy-duty applications.
Regular price
$49.99
Regular price
Sale price
$49.99
Unit price
per
Initiate Order
Male Stud Non Return Valve with O-ring Thread UNF/UN-2A
$49.99
Quantity: 1
Claim Your Seller Account
Male Stud Non Return Valve with O-ring Thread UNF/UN-2A
$49.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.
The Male Stud Non Return Valve with O-ring Thread UNF/UN-2A is a high-quality stainless steel valve suitable for extra light duty to heavy duty applications with a nominal operating pressure of 400 bar. This valve features precise dimensions including M and W tube diameters, threaded ends for secure fitting, and compliance with industry standards. Ideal for hydraulic systems where reliability and performance are paramount.

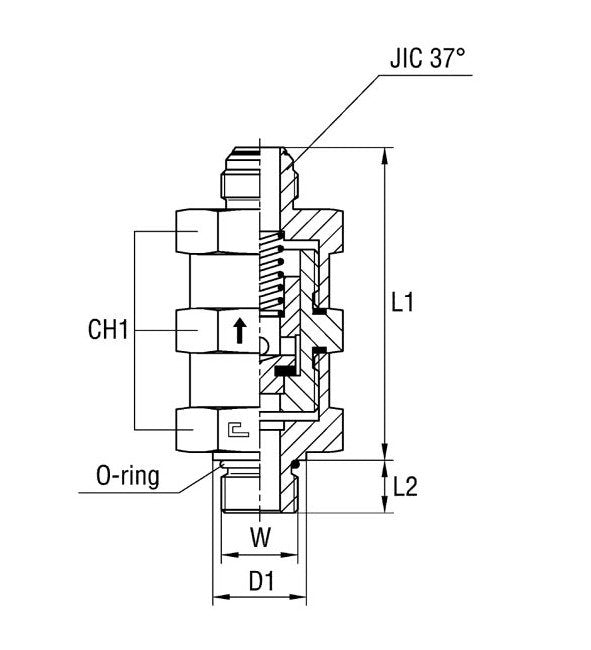

Product Specifications
Specifications Ch1
19.0 mm
Specifications D1
16.8 mm
Specifications Diameter Pass
4 mm
Specifications Jic 37 Thread
1/2-20
Specifications L1
62.5 mm
Specifications L2
9.1 mm
Specifications Material
Stainless Steel
Specifications M Tube Diameter
8 mm
Specifications Nominal Operating Pressure
400 bar
Specifications Pressure
Extra Light Duty | Heavy Duty | Light Duty
Specifications W Thread Size
1/2-20
Specifications W Tube Diameter
5/16 in
