Male Stud Non Return Valve with O-ring Thread UNF/UN-2A
Male Stud Non Return Valve with O-ring Thread UNF/UN-2A
SKU:FIT-bbd13b
Heavy-duty Male Stud Non Return Valve with O-ring Thread UNF/UN-2A - Ideal for high-pressure applications
Regular price
$44.99
Regular price
Sale price
$44.99
Unit price
per
Initiate Order
Male Stud Non Return Valve with O-ring Thread UNF/UN-2A
$44.99
Quantity: 1
Claim Your Seller Account
Male Stud Non Return Valve with O-ring Thread UNF/UN-2A
$44.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.
The Male Stud Non Return Valve with O-ring Thread UNF/UN-2A is a robust hydraulic check valve designed for heavy-duty applications. With a nominal operating pressure of 350 bar, this valve ensures reliable performance under extreme conditions. Made of high-quality carbon steel, it features precise dimensions and a 37° JIC threaded connection for secure fitting. Its exceptional build quality and extra-light to heavy-duty pressure range make it ideal for industrial and government procurement needs.

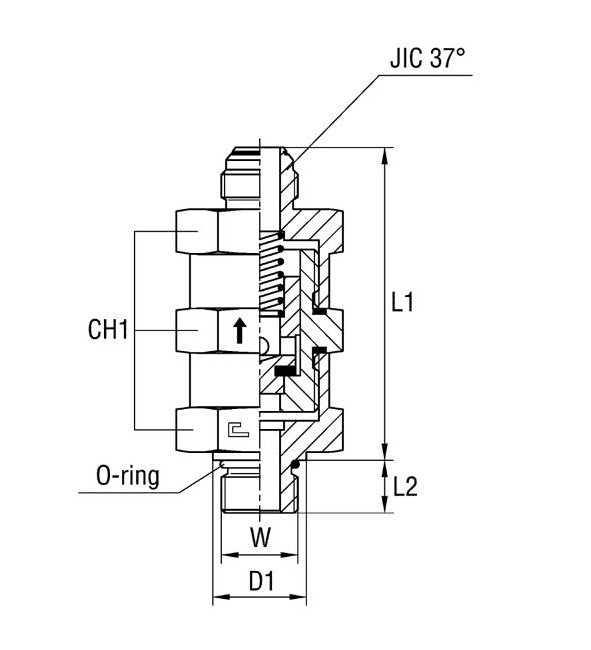

Product Specifications
Specifications Ch1
32 mm
Specifications D1
21.8 mm
Specifications Diameter Pass
8 mm
Specifications Jic 37 Thread
3/4-16
Specifications L1
70.7 mm
Specifications L2
11.1 mm
Specifications Material
Carbon Steel
Specifications M Tube Diameter
12 mm
Specifications Nominal Operating Pressure
350 bar
Specifications Pressure
Extra Light Duty | Heavy Duty | Light Duty
Specifications W Thread Size
3/4-16
Specifications W Tube Diameter
1/2 in
