Male Stud Non Return Valve with O-ring Thread UNF/UN-2A
Male Stud Non Return Valve with O-ring Thread UNF/UN-2A
SKU:FIT-60678e
Reliable Male Stud Non Return Valve for hydraulic systems, with UNF/UN-2A threading and stainless steel construction.
Regular price
$49.99
Regular price
Sale price
$49.99
Unit price
per
Initiate Order
Male Stud Non Return Valve with O-ring Thread UNF/UN-2A
$49.99
Quantity: 1
Claim Your Seller Account
Male Stud Non Return Valve with O-ring Thread UNF/UN-2A
$49.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.
The Male Stud Non Return Valve with O-ring Thread UNF/UN-2A - Standard Body is a high-quality hydraulic check valve designed for extra light duty to heavy duty applications. With a nominal operating pressure of 240 bar, stainless steel construction, and precise dimensions, it ensures reliable performance and leak-free operation. This valve's UNF/UN-2A threading makes installation easy, while its compliance with industry standards positions it as the ideal choice for both consumer and institutional buyers.

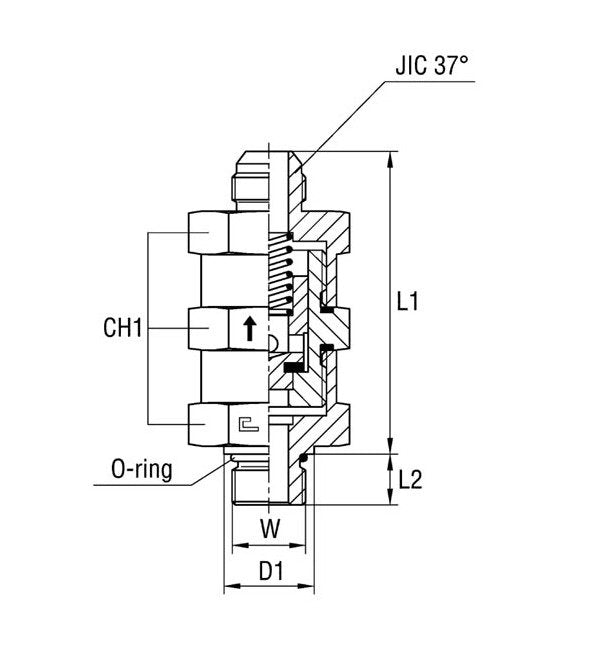

Product Specifications
Specifications Ch1
70 mm
Specifications D1
54.8 mm
Specifications Diameter Pass
29 mm
Specifications Jic 37 Thread
1 7/8-12
Specifications L1
111.5 mm
Specifications L2
15.1 mm
Specifications Material
Stainless Steel
Specifications M Tube Diameter
38 mm
Specifications Nominal Operating Pressure
240 bar
Specifications Pressure
Extra Light Duty | Heavy Duty | Light Duty
Specifications W Thread Size
1 7/8-12
Specifications W Tube Diameter
1 1/2 in
