Male Stud Non Return Valve with O-ring Thread UNF/UN-2A
Male Stud Non Return Valve with O-ring Thread UNF/UN-2A
SKU:VAL-2cbcb1
Durable stainless steel Male Stud Non Return Valve for reliable hydraulic system control.
Regular price
$99.99
Regular price
Sale price
$99.99
Unit price
per
Initiate Order
Male Stud Non Return Valve with O-ring Thread UNF/UN-2A
$99.99
Quantity: 1
Claim Your Seller Account
Male Stud Non Return Valve with O-ring Thread UNF/UN-2A
$99.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.
The Male Stud Non Return Valve with O-ring Thread UNF/UN-2A is an essential component for hydraulic systems, offering a reliable fluid control solution. Crafted from stainless steel, it ensures durability and resilience under varying pressures. With a nominal operating pressure of 240 bar, it supports extra light duty, heavy duty, and light duty applications. This valve, with precise dimensions and JIC 37° Thread of 1 5/8-12, guarantees secure fittings and efficient performance. Suitable for DIN hydraulic systems, it meets stringent industry standards for quality and reliability.

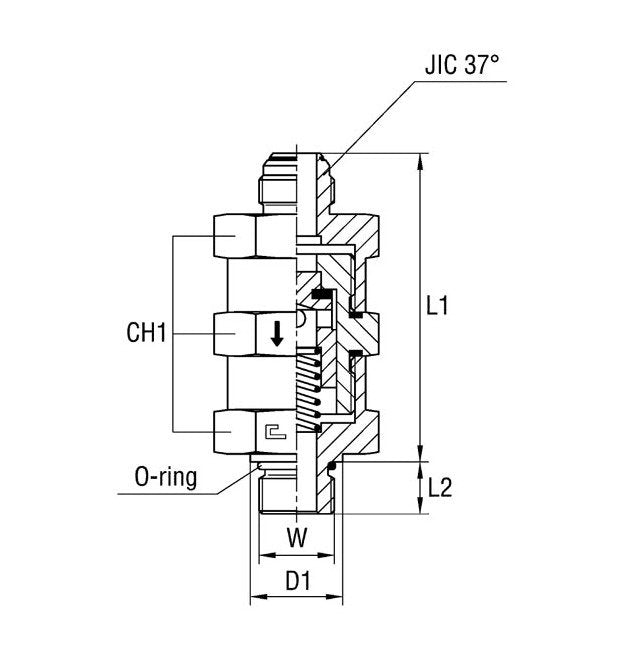

Product Specifications
Specifications Ch1
70 mm
Specifications D1
49.8 mm
Specifications Diameter Pass
25.5 mm
Specifications Jic 37 Thread
1 5/8-12
Specifications L1
108.3 mm
Specifications L2
15.1 mm
Specifications Material
Stainless Steel
Specifications M Tube Diameter
30 mm | 32 mm
Specifications Nominal Operating Pressure
240 bar
Specifications Pressure
Extra Light Duty | Heavy Duty | Light Duty
Specifications W Thread Size
1 5/8-12
Specifications W Tube Diameter
1 1/4 in
