Male Stud Non Return Valve with O-ring Thread UNF/UN-2A - Heavy Duty Hydraulic Check Valve
Male Stud Non Return Valve with O-ring Thread UNF/UN-2A - Heavy Duty Hydraulic Check Valve
SKU:FIT-abbe78
High-performance Male Stud Non Return Valve for hydraulic systems, 240 bar pressure rating, durable carbon steel construction.
Regular price
$89.99
Regular price
Sale price
$89.99
Unit price
per
Initiate Order
Male Stud Non Return Valve with O-ring Thread UNF/UN-2A - Heavy Duty Hydraulic Check Valve
$89.99
Quantity: 1
Claim Your Seller Account
Male Stud Non Return Valve with O-ring Thread UNF/UN-2A - Heavy Duty Hydraulic Check Valve
$89.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.
The Male Stud Non Return Valve with O-ring Thread UNF/UN-2A - Heavy Duty Hydraulic Check Valve is designed to withstand high-pressure environments with a nominal operating pressure of 240 bar. Crafted from durable carbon steel, this valve ensures reliable performance and longevity. The precision engineering of this valve guarantees a secure fit and excellent flow control, making it ideal for hydraulic systems in industrial settings. Compliant with federal procurement standards and industry-specific certifications, it meets the stringent requirements of government and institutional buyers.

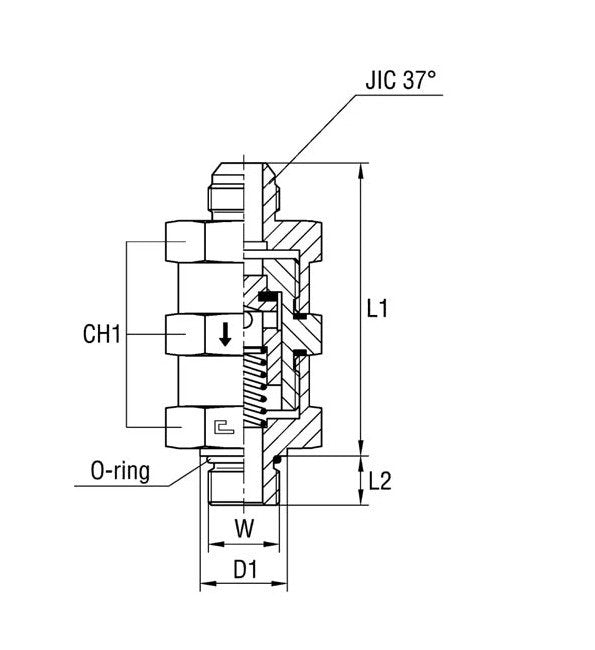

Product Specifications
Specifications Ch1
70 mm
Specifications D1
54.8 mm
Specifications Diameter Pass
29 mm
Specifications Jic 37 Thread
1 7/8-12
Specifications L1
111.5 mm
Specifications L2
15.1 mm
Specifications Material
Carbon Steel
Specifications M Tube Diameter
38 mm
Specifications Nominal Operating Pressure
240 bar
Specifications Pressure
Extra Light Duty | Heavy Duty | Light Duty
Specifications W Thread Size
1 7/8-12
Specifications W Tube Diameter
1 1/2 in
