Male Stud Non Return Valve with O-ring Thread UNF/UN-2A - Hydraulic Check Valve
Male Stud Non Return Valve with O-ring Thread UNF/UN-2A - Hydraulic Check Valve
SKU:VAL-dcc404
Premium Male Stud Non Return Valve for Hydraulic Systems - Extra, Heavy & Light Duty, 290 Bar
Regular price
$59.99
Regular price
Sale price
$59.99
Unit price
per
Initiate Order
Male Stud Non Return Valve with O-ring Thread UNF/UN-2A - Hydraulic Check Valve
$59.99
Quantity: 1
Claim Your Seller Account
Male Stud Non Return Valve with O-ring Thread UNF/UN-2A - Hydraulic Check Valve
$59.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.
The Male Stud Non Return Valve with O-ring Thread UNF/UN-2A - O-ring Body is a high-quality hydraulic check valve designed for superior performance in various pressure environments. With options for Extra Light Duty, Heavy Duty, and Light Duty applications, this valve operates at a nominal pressure of 290 bar. Crafted from durable carbon steel, it features precise dimensions including a tube diameter of 25 mm and thread size of 1 5/16-12. Meeting stringent industry standards, this valve ensures reliable performance and longevity in hydraulic systems.

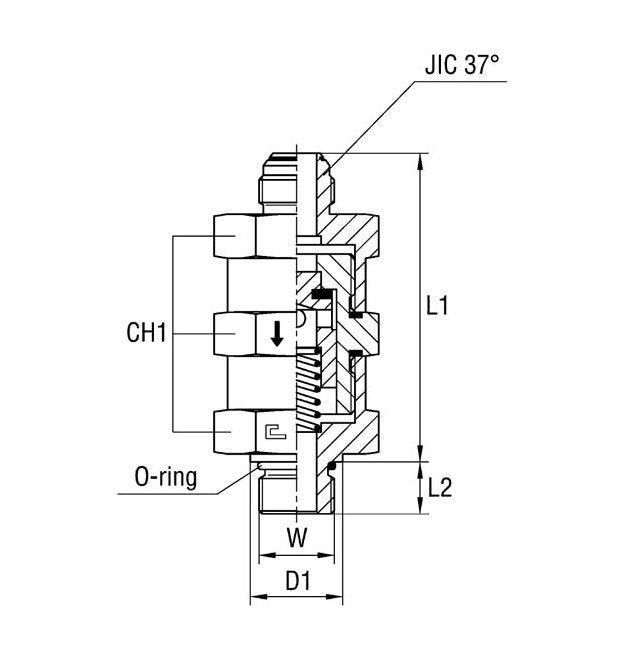

Product Specifications
Specifications Ch1
50 mm
Specifications D1
40.8 mm
Specifications Diameter Pass
18 mm
Specifications Jic 37 Thread
1 5/16-12
Specifications L1
89.1 mm
Specifications L2
15.1 mm
Specifications Material
Carbon Steel
Specifications M Tube Diameter
25 mm
Specifications Nominal Operating Pressure
290 bar
Specifications Pressure
Extra Light Duty | Heavy Duty | Light Duty
Specifications W Thread Size
1 5/16-12
Specifications W Tube Diameter
1 in
Category 6
Male Stud Non Return Valve with O-ring Thread UNF/UN-2A
