Male Stud Non Return Valve with O-ring Thread UNF/UN-2A - O-ring Body
Male Stud Non Return Valve with O-ring Thread UNF/UN-2A - O-ring Body
SKU:VAL-abe4fd
Enhance hydraulic system performance with this Male Stud Non Return Valve. Pressure options up to 350 bar. Durable carbon steel construction. Ideal for institutional buyers.
Regular price
$49.99
Regular price
Sale price
$49.99
Unit price
per
Initiate Order
Male Stud Non Return Valve with O-ring Thread UNF/UN-2A - O-ring Body
$49.99
Quantity: 1
Claim Your Seller Account
Male Stud Non Return Valve with O-ring Thread UNF/UN-2A - O-ring Body
$49.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.

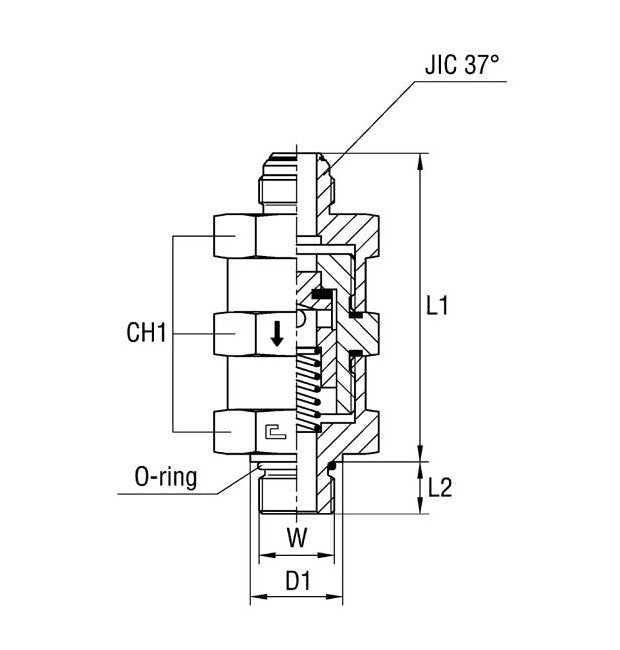

The Male Stud Non Return Valve with O-ring Thread UNF/UN-2A - O-ring Body is designed for superior performance in hydraulic systems. With pressure options for Extra Light Duty, Heavy Duty, and Light Duty applications, this valve ensures reliable operation at up to 350 bar nominal pressure. Crafted from durable carbon steel, it features a 10mm tube diameter, 3/8in tube diameter, and 9/16-20 thread size. Measuring 62.1mm in length with a 16.8mm diameter, this valve's 4mm pass diameter and 19.0mm CH1 offer efficient fluid control. The JIC 37° thread and compliance with industry standards make it an ideal choice for institutional buyers seeking precision and reliability.
Product Specifications
Specifications Ch1
19.0 mm
Specifications D1
16.8 mm
Specifications Diameter Pass
4 mm
Specifications Jic 37 Thread
9/16-18
Specifications L1
62.1 mm
Specifications L2
10.0 mm
Specifications Material
Carbon Steel
Specifications M Tube Diameter
10 mm
Specifications Nominal Operating Pressure
350 bar
Specifications Pressure
Extra Light Duty | Heavy Duty | Light Duty
Specifications W Thread Size
9/16-20
Specifications W Tube Diameter
3/8 in
Category 6
Male Stud Non Return Valve with O-ring Thread UNF/UN-2A
