Male Stud Non Return Valve with O-ring Thread UNF/UN-2A - Standard Body
Male Stud Non Return Valve with O-ring Thread UNF/UN-2A - Standard Body
SKU:VAL-170630
Hydraulic check valve for precise control in hydraulic systems. Reliable, durable, and compliant with industry standards.
Regular price
$129.99
Regular price
Sale price
$129.99
Unit price
per
Initiate Order
Male Stud Non Return Valve with O-ring Thread UNF/UN-2A - Standard Body
$129.99
Quantity: 1
Claim Your Seller Account
Male Stud Non Return Valve with O-ring Thread UNF/UN-2A - Standard Body
$129.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.
The Male Stud Non Return Valve with O-ring Thread UNF/UN-2A - Standard Body is a versatile hydraulic check valve designed for extra light duty to heavy-duty applications. With a nominal operating pressure of 240 bar, this valve boasts durable construction from carbon steel, ensuring reliability. Its precise dimensions, such as M and W tube diameters and JIC 37° thread size, make it suitable for various hydraulic systems. This valve is compliant with industry standards, making it an ideal choice for institutional procurement needs.

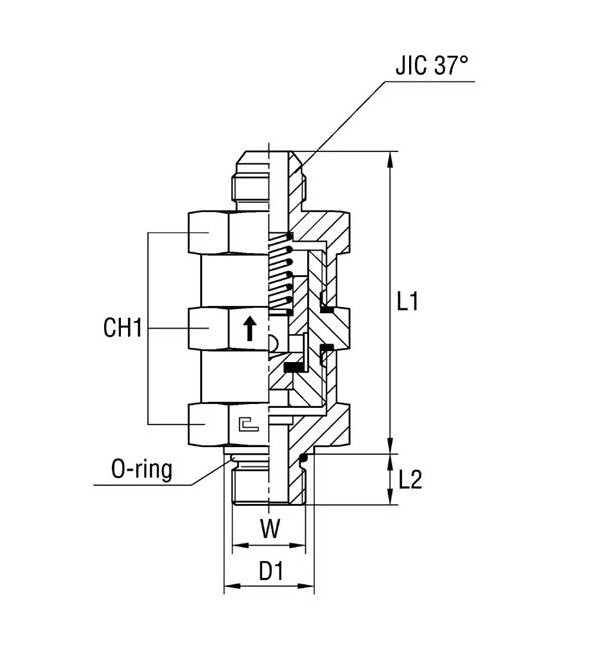

Product Specifications
Specifications Ch1
70 mm
Specifications D1
49.8 mm
Specifications Diameter Pass
25.5 mm
Specifications Jic 37 Thread
1 5/8-12
Specifications L1
108.3 mm
Specifications L2
15.1 mm
Specifications Material
Carbon Steel
Specifications M Tube Diameter
30 mm | 32 mm
Specifications Nominal Operating Pressure
240 bar
Specifications Pressure
Extra Light Duty | Heavy Duty | Light Duty
Specifications W Thread Size
1 5/8-12
Specifications W Tube Diameter
1 1/4 in
Category 6
Male Stud Non Return Valve with O-ring Thread UNF/UN-2A
