Male Stud Non Return Valve with O-ring Thread UNF/UN-2A - Standard Body
Male Stud Non Return Valve with O-ring Thread UNF/UN-2A - Standard Body
SKU:FIT-dd44aa
Premium Male Stud Non Return Valve for reliable hydraulic performance. Ideal for varied applications, meets industry standards.
Regular price
$59.99
Regular price
Sale price
$59.99
Unit price
per
Initiate Order
Male Stud Non Return Valve with O-ring Thread UNF/UN-2A - Standard Body
$59.99
Quantity: 1
Claim Your Seller Account
Male Stud Non Return Valve with O-ring Thread UNF/UN-2A - Standard Body
$59.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.
The Male Stud Non Return Valve is designed for optimal hydraulic performance and durability. With a pressure range from Extra Light Duty to Heavy Duty, a Nominal Operating Pressure of 240 bar, and quality Carbon Steel construction, this valve ensures reliable operation in diverse applications. The UNF/UN-2A threading and precision engineering meet strict industry standards, making it ideal for both consumer and institutional use.

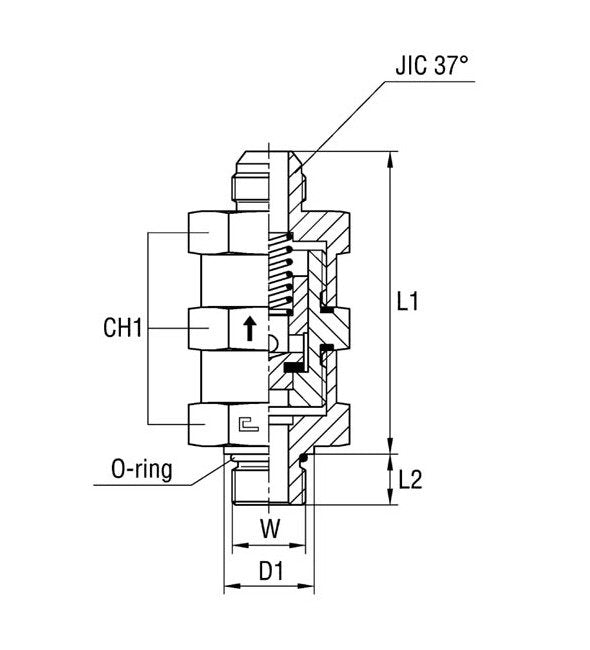

Product Specifications
Specifications Ch1
70 mm
Specifications D1
54.8 mm
Specifications Diameter Pass
29 mm
Specifications Jic 37 Thread
1 7/8-12
Specifications L1
111.5 mm
Specifications L2
15.1 mm
Specifications Material
Carbon Steel
Specifications M Tube Diameter
38 mm
Specifications Nominal Operating Pressure
240 bar
Specifications Pressure
Extra Light Duty | Heavy Duty | Light Duty
Specifications W Thread Size
1 7/8-12
Specifications W Tube Diameter
1 1/2 in
