Male Stud Non Return Valve with O-ring - UNF/UN-2A, Heavy Duty, 400 bar
Male Stud Non Return Valve with O-ring - UNF/UN-2A, Heavy Duty, 400 bar
SKU:FIT-d27e42
High-performance Male Stud Non Return Valve with O-ring for heavy-duty hydraulic systems. Up to 400 bar pressure capacity, durable carbon steel construction.
Regular price
$24.99
Regular price
Sale price
$24.99
Unit price
per
Initiate Order
Male Stud Non Return Valve with O-ring - UNF/UN-2A, Heavy Duty, 400 bar
$24.99
Quantity: 1
Claim Your Seller Account
Male Stud Non Return Valve with O-ring - UNF/UN-2A, Heavy Duty, 400 bar
$24.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.
The Male Stud Non Return Valve with O-ring offers exceptional performance under heavy-duty hydraulic applications. Designed for an extra light to heavy-duty pressures of up to 400 bar, this valve ensures reliable operation. With a durable carbon steel construction, 8mm tube diameter, and 5/16 in tube diameter, it meets stringent industry standards for quality and reliability.

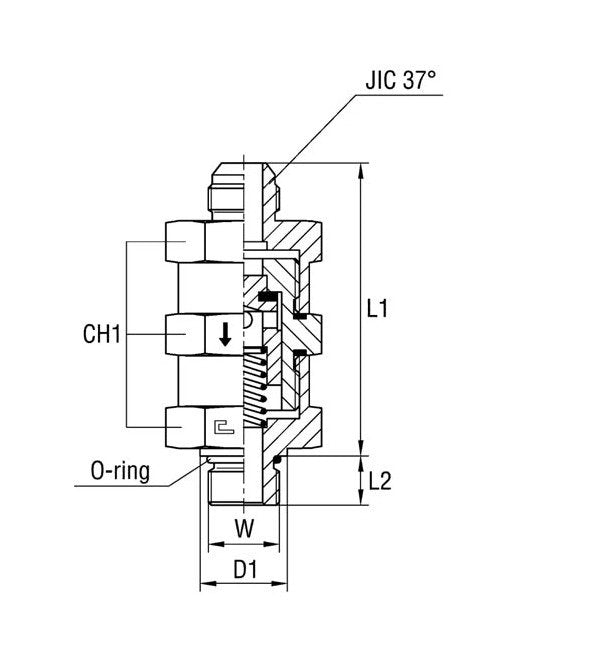

Product Specifications
Specifications Ch1
19.0 mm
Specifications D1
16.8 mm
Specifications Diameter Pass
4 mm
Specifications Jic 37 Thread
1/2-20
Specifications L1
62.5 mm
Specifications L2
9.1 mm
Specifications Material
Carbon Steel
Specifications M Tube Diameter
8 mm
Specifications Nominal Operating Pressure
400 bar
Specifications Pressure
Extra Light Duty | Heavy Duty | Light Duty
Specifications W Thread Size
1/2-20
Specifications W Tube Diameter
5/16 in
