Male Stud Non Return Valve with O-ring UNF/UN-2A - Stainless Steel
Male Stud Non Return Valve with O-ring UNF/UN-2A - Stainless Steel
SKU:FIT-2cbcb1
Durable Male Stud Non Return Valve with O-ring for optimal fluid control in high-pressure applications.
Regular price
$129.99
Regular price
Sale price
$129.99
Unit price
per
Initiate Order
Male Stud Non Return Valve with O-ring UNF/UN-2A - Stainless Steel
$129.99
Quantity: 1
Claim Your Seller Account
Male Stud Non Return Valve with O-ring UNF/UN-2A - Stainless Steel
$129.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.
The Male Stud Non Return Valve with O-ring Thread UNF/UN-2A is a durable and reliable hydraulic check valve designed for heavy-duty applications. With a nominal operating pressure of 240 bar, stainless steel construction, and precision engineering, this valve ensures optimal performance and longevity. Its unique design features a Male Stud connection, O-ring Thread UNF/UN-2A, and O-ring Body for secure sealing and efficient fluid control. Compliant with Federal procurement standards, this valve is ideal for industrial and institutional settings requiring top-tier quality and performance.

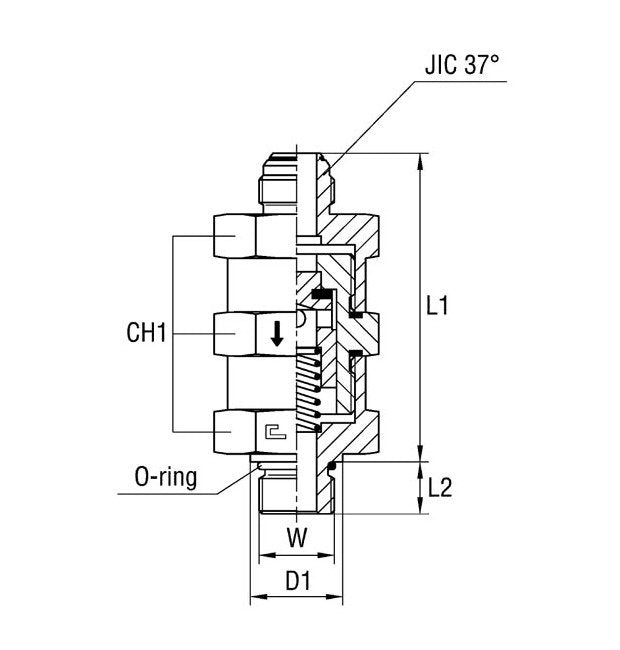

Product Specifications
Specifications Ch1
70 mm
Specifications D1
49.8 mm
Specifications Diameter Pass
25.5 mm
Specifications Jic 37 Thread
1 5/8-12
Specifications L1
108.3 mm
Specifications L2
15.1 mm
Specifications Material
Stainless Steel
Specifications M Tube Diameter
30 mm | 32 mm
Specifications Nominal Operating Pressure
240 bar
Specifications Pressure
Extra Light Duty | Heavy Duty | Light Duty
Specifications W Thread Size
1 5/8-12
Specifications W Tube Diameter
1 1/4 in
