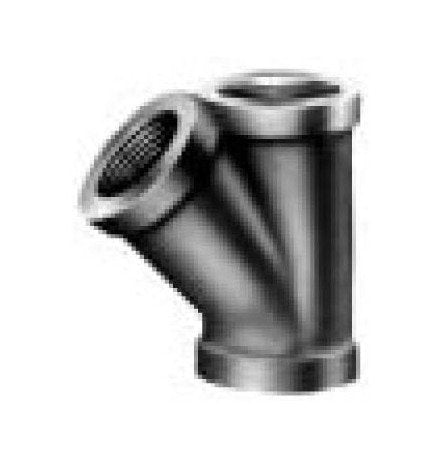

Malleable Iron Class 150 45° Y-Branch or Lateral
Malleable Iron Class 150 45° Y-Branch or Lateral
SKU:FIT-764109
High-quality Malleable Iron Class 150 45° Y-Branch for efficient fluid flow management in industrial applications. Durable and versatile.
Regular price
$25.99
Regular price
Sale price
$25.99
Unit price
per
Initiate Order
Malleable Iron Class 150 45° Y-Branch or Lateral
$25.99
Quantity: 1
Claim Your Seller Account
Malleable Iron Class 150 45° Y-Branch or Lateral
$25.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.

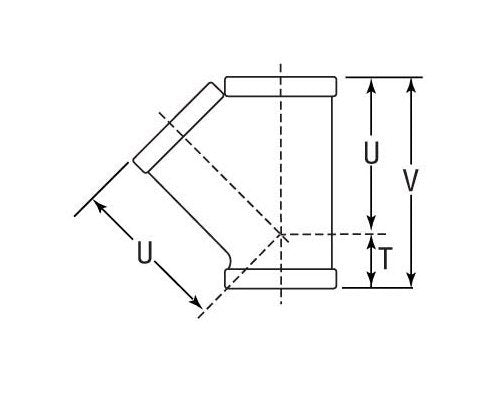

The Malleable Iron Class 150 45° Y-Branch or Lateral is a durable and versatile fitting designed for efficient fluid flow management. With NPS of 1 1/2 and DN of 40, it ensures optimal performance. Weighing 0.91 kg in black and 0.90 kg when galvanized, it offers strength and corrosion resistance. Its precise dimensions of T: 29 mm, U: 83 mm, V: 111 mm provide a perfect fit. Ideal for industrial applications requiring reliability and compliance with malleable iron standards.
Product Specifications
Specifications Dimension T
29 mm
Specifications Dimension U
83 mm
Specifications Dimension V
111 mm
Specifications Dn
40
Specifications Nps
1 1/2
Specifications Weight Black
0.91 kg
Specifications Weight Galv
0.90 kg
