Malleable Iron Class 150 Floor Flange
Malleable Iron Class 150 Floor Flange
SKU:FIT-d30cf5
Enhance pipe connections with our durable and reliable Malleable Iron Class 150 Floor Flange. Meets ASTM A197 standards.
Regular price
$12.99
Regular price
Sale price
$12.99
Unit price
per
Initiate Order
Malleable Iron Class 150 Floor Flange
$12.99
Quantity: 1
Claim Your Seller Account
Malleable Iron Class 150 Floor Flange
$12.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.

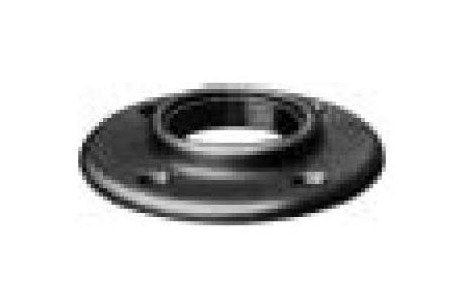

The Malleable Iron Class 150 Floor Flange is designed for secure and reliable pipe connections. With a nominal pipe size of 3/8 inches, this flange features a 76mm diameter, 4 bolt holes of 6mm each, and meets ASTM A197 and ASME B16.3 standards. Crafted from durable cast iron, it ensures stability and longevity in various applications. Ideal for both consumer and institutional use, this floor flange guarantees robust performance and easy installation.
Product Specifications
Specifications Diameter Of Bolt Circle
51 mm
Specifications Diameter Of Flange
76 mm
Specifications Diameter Of Holes
6 mm
Specifications Dn
10
Specifications Material
Cast Iron
Specifications Nps
3/8
Specifications Number Of Holes
4
Specifications Weight Black
0.15 kg
Specifications Weight Galv
0.22 kg
