Manford CNC Turret Milling Machine with Fagor Controller - 10 x 54 in Table
Manford CNC Turret Milling Machine with Fagor Controller - 10 x 54 in Table
SKU:MIL-a76fa4
Precision meets power with the Manford CNC Turret Milling Machine for industrial accuracy and efficiency.
Regular price
$28,999.99
Regular price
Sale price
$28,999.99
Unit price
per
Initiate Order
Manford CNC Turret Milling Machine with Fagor Controller - 10 x 54 in Table
$28,999.99
Quantity: 1
Claim Your Seller Account
Manford CNC Turret Milling Machine with Fagor Controller - 10 x 54 in Table
$28,999.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.

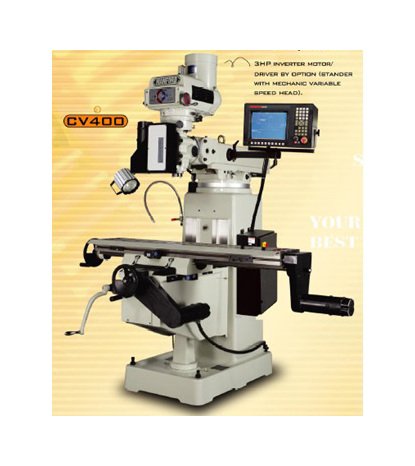

Experience precision and power with the Manford CNC Turret Milling Machine featuring a Fagor Controller. This machine boasts a 10 x 54-inch table, variable speed 3HP spindle, hardened & ground components, auto lubrication system, and more. Ideal for industrial settings requiring high accuracy and efficiency. Meets Federal/DoD procurement, GSA, and FAR compliance standards.
Product Specifications
Features Features
10" X 54" TableVariable speed, 3HP, 3 Phase, 220/440VR8 or NST#30; Spindle material SAE4115(SCM415) full piece by hardened & groundTurcite-B On XY ways, slideways & GibsHardened & Ground X&Y Slideways and table32mm Precision ground Ball screws on XYGrinding on Ram & column slidewaysGrinding on table T-slotHardened & ground on QuillLeveling Screw & Plate On Base.Strict Required Scraping with High Precise Accuracy.Tool box & ToolsRubber chip cover (front & rear)Auto Lubrication systemWork light included
Optional Accessories Optional Accessories
Coolant systemCoolant tray (base)Hardware limit switch for 2 axes (included)Air Power Drawbar (R8 or NST#30;)EVS head with 3 HP Inverter motor and DriverAlign Power feed on Z optionServo Turbo Power feed on Z optionTransformer for power to 220V requiredfor inverter & CNC (Required if power supply is other than 220V, 3 Phase)Side splash guard 2pcsCoolant Mist unit stand aloneMPG manual Pulse Generator: hand jog remoteRiser block 4" / 6" / 8"
Technical Specs Brands
Manford
Technical Specs Control Options

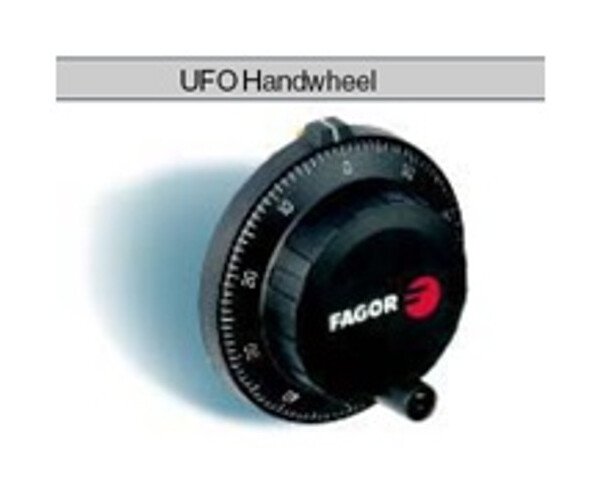

UFO Flat Hand wheel on the side of the Operator PanelConversational Programming (standard)Tele diagnosisDNC (winding) (standard)EngravingSpeed Feed AssistanceSolid Graphics (standard)2
Technical Specs Cross Travel Y Axis
15 in
Technical Specs Head Swivel
360 º
Technical Specs Head Swivel Left Hand Lh In Degrees
90 º
Technical Specs Head Swivel Right Hand Rh In Degrees
90 º
Technical Specs Head Tilting Bank In Degrees
45 º
Technical Specs Head Tilting Front In Degrees
45 º
Technical Specs Height
83 1/2 in
Technical Specs Included Items
24 VDC power supplyLogic relays for M3, M4, and M816 inputs and 8 outputs
Technical Specs Length
72-7/8 in
Technical Specs Longitudinalcross Feed Rate
0 to 120 in/min
Technical Specs Longitudinal Travel Hand Only
32-5/8 in
Technical Specs Maximum Distance Spindle To Column
6 1/4 to 28 1/4 in
Technical Specs Net Weight
3080 lb
Technical Specs Quill Feed
0.0015 | 0.003 | 0.006
Technical Specs Quill Travel
4.5 in
Technical Specs Ram Travel
22 in
Technical Specs Special Options
4th axis Drive - 4th Axis DC DriverAdditional I/O (54IN 31OUT) with 8 Spare M Functions - Additional PLC inputs and outputs (includes wiring & Labor)ADD REMOTE START/STOP SWITCH - REMOTE PENDANT AUXILIARY START/STOP SWITCH WITH 6
Technical Specs Spindle Motor Phase
3
Technical Specs Spindle Motor Power
3 hp
Technical Specs Spindle Speeds
60 to 4500 rpm
Technical Specs Spindle Taper
NST#30; option | R8
Technical Specs Table Size
10 x 54 in
Technical Specs Table To Spindle Nose
5 7/8 to 9 7/8 in
Technical Specs The Operator Station Will Contain
3 Axis 8055-FL Mill Control (Control has4th axis capability with option)10.4 inch Color LCD screenConversational (ICON) / G-Code ProgrammingMemory: 500MBof memory card (expandable)Solid GraphicsCustomiz
Technical Specs Travel Of Knee
14 in
Technical Specs T Slot Number And Size
3 x 5/8 in
Technical Specs Voltage
220 V | 440 V
Technical Specs Width
74 3/4 in
