Manifold Coaxial Valve - CX Series - Brass - Electric Actuator - G 3/4
Manifold Coaxial Valve - CX Series - Brass - Electric Actuator - G 3/4
SKU:ACC-08ca4c
Premium brass manifold coaxial valve for precise control in industrial settings. Electric actuator, IP65 protection. Max pressure: 40 bar.
Regular price
$189.99
Regular price
Sale price
$189.99
Unit price
per
Initiate Order
Manifold Coaxial Valve - CX Series - Brass - Electric Actuator - G 3/4
$189.99
Quantity: 1
Claim Your Seller Account
Manifold Coaxial Valve - CX Series - Brass - Electric Actuator - G 3/4
$189.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.

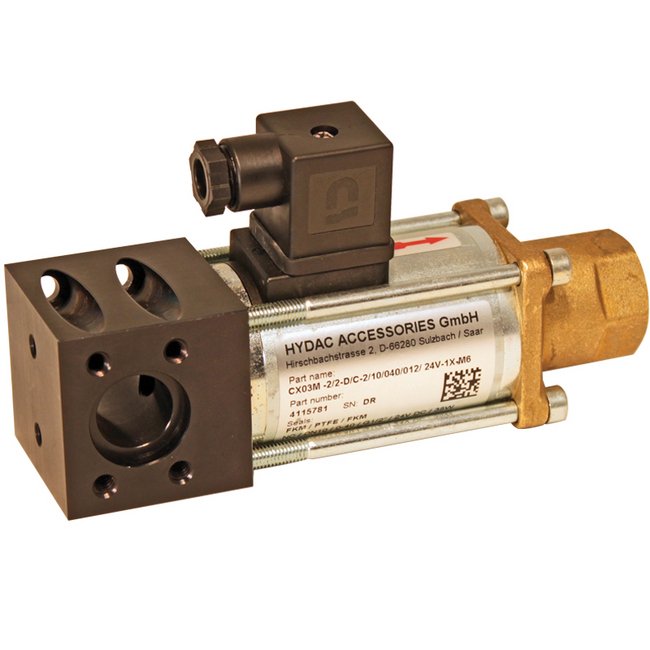

The CX03M-2/2-D/C-2/15/040/034/24V-M12 DVS is a high-performance brass manifold coaxial valve designed for gaseous, liquid, and contaminated media. With a maximum pressure of 40 bar and an operating temperature range from -10 ºC to 100 ºC, this valve ensures reliable operation in diverse environments. Featuring an electric actuator and normally closed switching function, it offers precise control. Additionally, IP65 protection when fitted with a connector plug ensures durability. This valve, with 2/2 ways and a weight of 3.6 kg, is ideal for industrial applications requiring efficient flow direction management.
Product Specifications
Dimensions Dimension B
184 mm
Dimensions Height
7.24 in
Specifications 3 Day Lead Time
No
Specifications Actuator Type
Electric
Specifications Back Pressure Max
16 bar | 232 psi
Specifications Body Material
Brass (Standard)
Specifications Degree Of Protection
IP 65 When Fitted with Connector Plug
Specifications Division
ACCESSORIES
Specifications Flow Direction
As Marked
Specifications Media
Gaseous, Liquid, Contaminated
Specifications Mounting Position
No Orientation Restrictions
Specifications Number Of Ways
2/2
Specifications Operating Temperature Max
100 ºC | 212 ºF
Specifications Operating Temperature Min
-10 ºC | 14 ºF
Specifications Pressure Max
40 bar | 580 psi
Specifications Product
BALL VALVES
Specifications Product Group Family
PROCESS AND AUTOMATED VALVES
Specifications Switching Function
Normally Closed
Specifications Thread Size
G 3/4
Specifications Thread Size 2
G 3/4
Specifications Thread Type
BSPP
Specifications Thread Type 2
BSPP
Specifications Type
Manifold Coaxial Valve
Specifications Weight
3.6 kg | 7.94 lb
