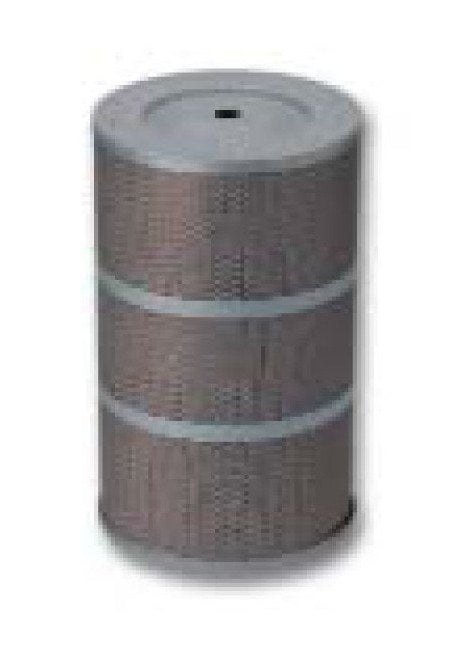

MANN + HUMMEL Conventional Paper EDM Filters
MANN + HUMMEL Conventional Paper EDM Filters
SKU:MAN-ff5a1e
High-performance MANN + HUMMEL Conventional Paper EDM Filters for wire and sink erosion. Metal construction, 3-5 µm filter fineness, inside to outside flow. Meet institutional procurement standards.
Regular price
$89.99
Regular price
Sale price
$89.99
Unit price
per
Initiate Order
MANN + HUMMEL Conventional Paper EDM Filters
$89.99
Quantity: 1
Claim Your Seller Account
MANN + HUMMEL Conventional Paper EDM Filters
$89.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.

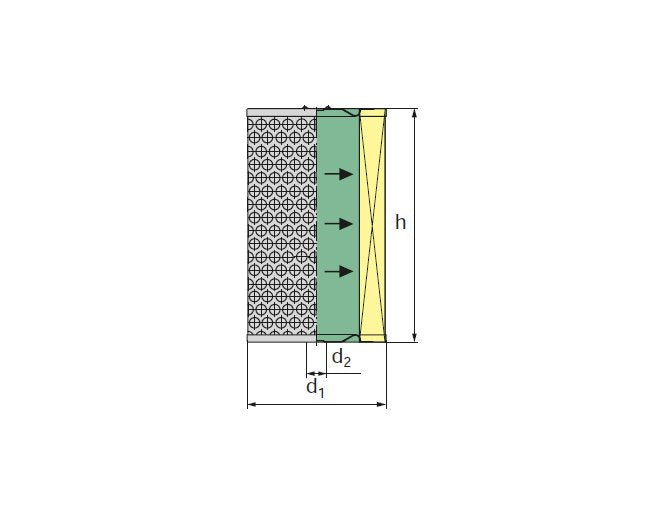

The MANN + HUMMEL Conventional Paper EDM Filters are designed for wire and sink erosion processes. With a filter surface area of 103 ft² and a filter fineness of 3 to 5 µm, these filters offer high filtration efficiency. Made of metal, these filters have dimensions d1: 11.9 in, d2: 1.1 in, and h: 20.0 in. Their inside to outside flow direction ensures optimal performance. Suitable for both consumer and institutional use, these filters meet stringent procurement standards and industry requirements.
Product Specifications
Note 0
For wire and sink erosion.
Specifications Design
A
Specifications Dimension D1
11.9 in | 302 mm
Specifications Dimension D2
1.1 in | 29 mm
Specifications Dimension H
20.0 in | 507 mm
Specifications Filter Fineness
3 to 5 µm
Specifications Filter Surface Area
103 ft² | 95300 cm²
Specifications Flow Direction
Inside to Outside
Specifications Material
Metal
