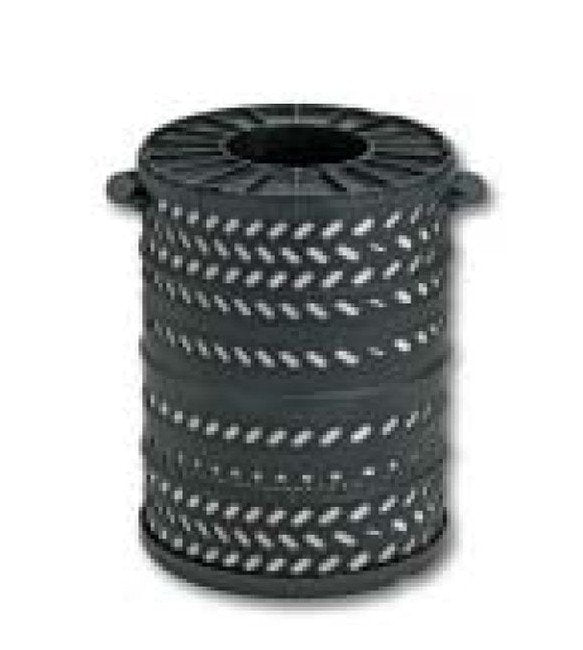

MANN + HUMMEL Conventional Paper EDM Filters
MANN + HUMMEL Conventional Paper EDM Filters
SKU:MAN-3959b1
High-performance MANN + HUMMEL Conventional Paper EDM Filters for efficient wire and sink erosion. Durable plastic construction with 156 ft² surface area.
Regular price
$99.99
Regular price
Sale price
$99.99
Unit price
per
Initiate Order
MANN + HUMMEL Conventional Paper EDM Filters
$99.99
Quantity: 1
Claim Your Seller Account
MANN + HUMMEL Conventional Paper EDM Filters
$99.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.

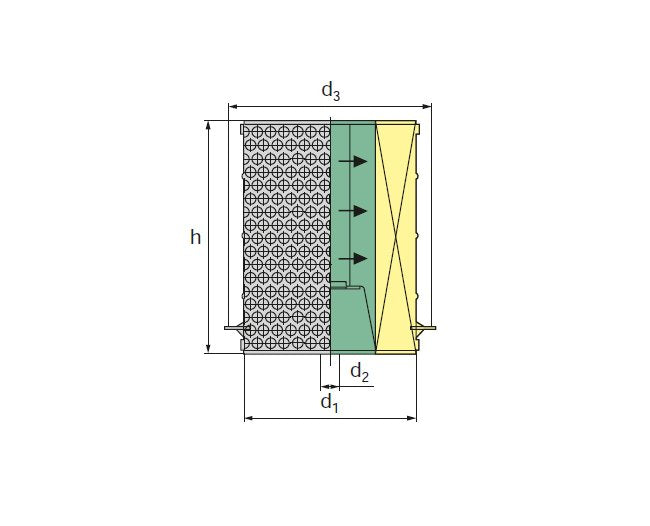

MANN + HUMMEL Conventional Paper EDM Filters are designed for wire and sink erosion applications. With a filter surface area of 156 ft² | 145000 cm² and a filter fineness of 3 to 5 µm, these filters ensure efficient removal of contaminants. Made of durable plastic, the filters feature dimensions d1: 13.4 in | 340 mm, d2: 1.9 in | 47.5 mm, d3: 15.9 in | 404 mm, h: 17.7 in | 450 mm. The flow direction is from inside to outside, optimizing filtration performance for EDM processes.
Product Specifications
Note 0
For wire and sink erosion.
Specifications Design
B
Specifications Dimension D1
13.4 in | 340 mm
Specifications Dimension D2
1.9 in | 47.5 mm
Specifications Dimension D3
15.9 in | 404 mm
Specifications Dimension H
17.7 in | 450 mm
Specifications Filter Fineness
3 to 5 µm
Specifications Filter Surface Area
156 ft² | 145000 cm²
Specifications Flow Direction
Inside to Outside
Specifications Material
Plastic
