MANN + HUMMEL Conventional Paper EDM Filters - Metal Design
MANN + HUMMEL Conventional Paper EDM Filters - Metal Design
SKU:MAN-4fbc0c
Enhance EDM efficiency with MANN + HUMMEL Conventional Paper Filters - Metal Design. Wire and sink erosion-ready, with 156 ft² surface area and 3-5 µm fineness.
Regular price
$129.99
Regular price
Sale price
$129.99
Unit price
per
Initiate Order
MANN + HUMMEL Conventional Paper EDM Filters - Metal Design
$129.99
Quantity: 1
Claim Your Seller Account
MANN + HUMMEL Conventional Paper EDM Filters - Metal Design
$129.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.

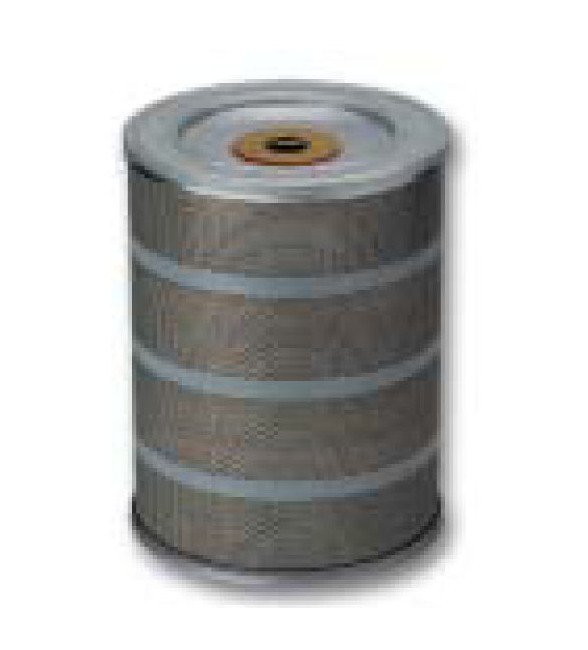

The MANN + HUMMEL Conventional Paper Electrical Discharge Machining (EDM) Filters are expertly designed for wire and sink erosion processes. With a filter surface area of 156 ft² and a filter fineness of 3 to 5 µm, these filters ensure precise filtration. The metal construction guarantees durability, while the inside to outside flow direction enhances efficiency. Compliant with top industry standards, these filters optimize performance and reliability in EDM applications.
Product Specifications
Note 0
For wire and sink erosion.
Specifications Design
C

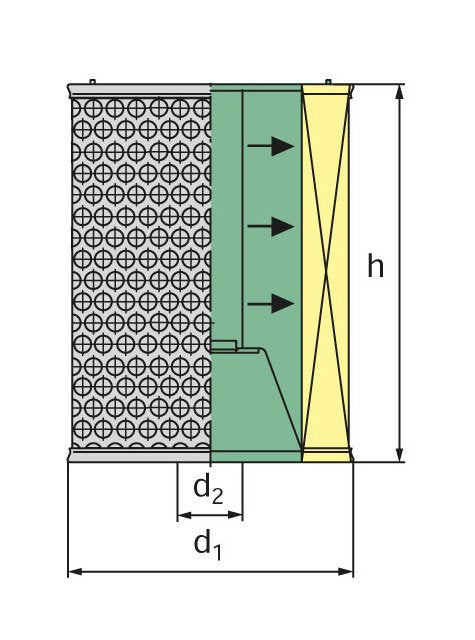

Specifications Dimension D1
13.4 in | 340 mm
Specifications Dimension D2
1.8 in | 45.5 mm
Specifications Dimension H
17.7 in | 450 mm
Specifications Filter Fineness
3 to 5 µm
Specifications Filter Surface Area
156 ft² | 145000 cm²
Specifications Flow Direction
Inside to Outside
Specifications Material
Metal
