MANN + HUMMEL EDM Filters
MANN + HUMMEL EDM Filters
SKU:MAN-40a6d6
Enhance EDM precision with MANN + HUMMEL Filters. Efficient, durable, and precise filtration for wire and sink erosion processes.
Regular price
$199.99
Regular price
Sale price
$199.99
Unit price
per
Initiate Order
MANN + HUMMEL EDM Filters
$199.99
Quantity: 1
Claim Your Seller Account
MANN + HUMMEL EDM Filters
$199.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.

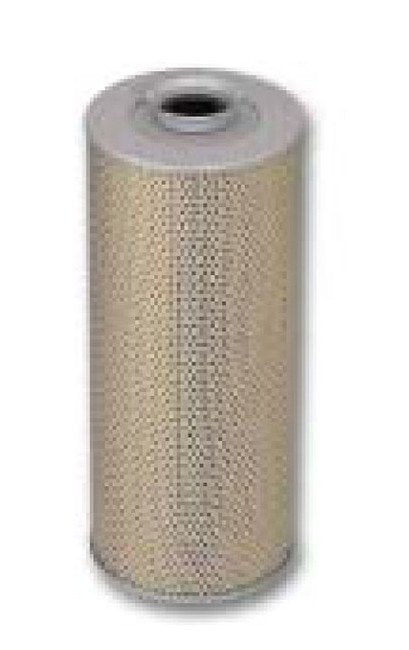

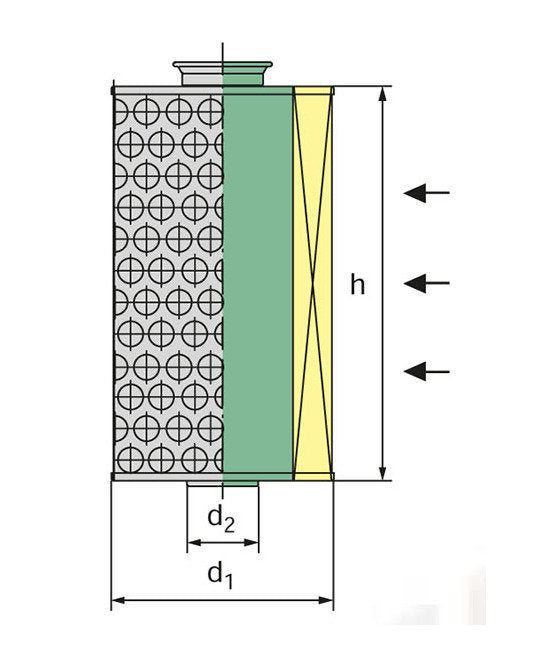

MANN + HUMMEL Electrical Discharge Machining (EDM) Filters are precision-engineered to meet the demanding requirements of wire and sink erosion processes. With a design optimized for efficiency, these filters offer a large Filter Surface Area of 30 ft² to ensure thorough filtration. Featuring dimensions d1 of 5.9 inches, d2 of 0.9 inches, and h of 14.3 inches, these filters deliver exceptional performance with a Filter Fineness of 3 to 5 µm. The flow direction from outside to inside enhances particle capture, making them ideal for EDM applications. Crafted from high-quality metal, these filters uphold superior durability and reliability, meeting industry standards for precision machining and erosion procedures.
Product Specifications
Note 0
For wire and sink erosion.For Dimension d2 in mm:Connection dimension according to D N EN 10 305.
Specifications Design
B
Specifications Diameter
Up to 150 mm
Specifications Dimension D1
5.9 in | 150 mm
Specifications Dimension D2
0.9 in | 22 mm
Specifications Dimension H
14.3 in | 364 mm
Specifications Filter Fineness
3 to 5 µm
Specifications Filter Surface Area
30 ft² | 27500 cm²
Specifications Flow Direction
Outside to Inside
Specifications Material
Metal
