MANN + HUMMEL EDM Filters, 25 µm, Metal Material

Name: MANN + HUMMEL EDM Filters, 25 µm, Metal Material
Brand: EDM Sales & Supplies, Inc.
SKU: MAN-849f92
Price: 129.99 USD
Availability: OutOfStock

SKU:MAN-849f92

Enhance your EDM process with MANN + HUMMEL Filters. Durable metal construction, 25 µm filter fineness, and 23 ft² surface area.

$129.99

Sale

Quantity

Delivery via Maden

Expect your order to arrive on time.

Secure Payments

All orders are processed through a secure, PCI-compliant checkout.

View full details

Upgrade your electrical discharge machining process with MANN + HUMMEL EDM Filters. Featuring a durable metal construction, these filters provide a filter fineness of 25 µm for efficient particle removal. With a filter surface area of 23 ft² | 21600 cm² and flow direction from outside to inside, these filters ensure optimum performance and longevity. Designed for wire and sink erosion applications, these filters meet stringent industry standards for precision and reliability.

Product Specifications

Note 0

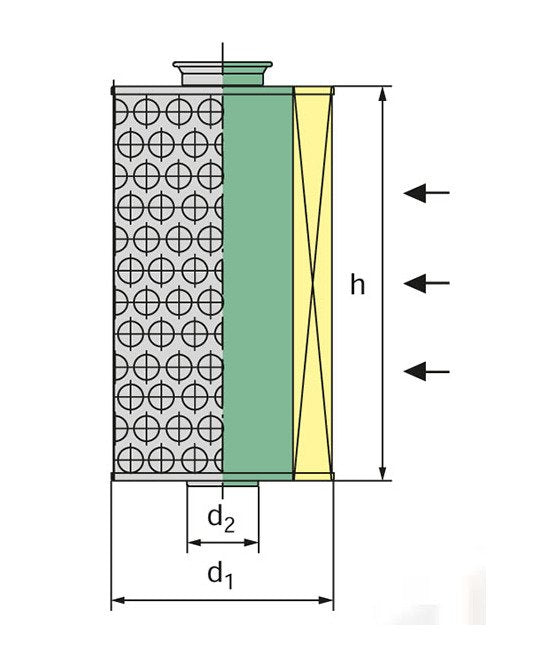

For wire and sink erosion.For Dimension d2 in mm:Connection dimension according to D N EN 10 305.

Specifications Design

Specifications Diameter

Up to 150 mm

Specifications Dimension D1

5.9 in | 150 mm

Specifications Dimension D2

0.9 in | 22 mm

Specifications Dimension H

14.3 in | 364 mm

Specifications Filter Fineness

25 µm

Specifications Filter Surface Area

23 ft² | 21600 cm²

Specifications Flow Direction

Outside to Inside

Specifications Material

Metal

MANN + HUMMEL EDM Filters, 25 µm, Metal Material
