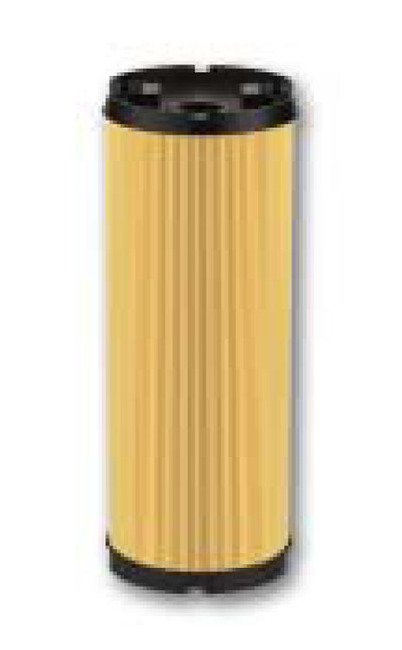

MANN + HUMMEL EDM Filters - Efficient Filtration for Electrical Discharge Machining

Name: MANN + HUMMEL EDM Filters - Efficient Filtration for Electrical Discharge Machining
Brand: EDM Sales & Supplies, Inc.
SKU: MAN-e06de9
Price: 89.99 USD
Availability: OutOfStock

SKU:MAN-e06de9

Enhance EDM process efficiency with MANN + HUMMEL EDM Filters. Optimal filtration for wire and sink erosion applications.

$89.99

Sale

Quantity

Delivery via Maden

Expect your order to arrive on time.

Secure Payments

All orders are processed through a secure, PCI-compliant checkout.

View full details

Enhance the performance of your electrical discharge machining processes with MANN + HUMMEL EDM Filters. Designed with a filter surface area of 29 ft² | 27000 cm² and a filter fineness of 3 to 5 µm, these filters ensure optimal filtration efficiency. The flow direction from outside to inside and high-quality plastic material provide durability and effective particle capture. Ideal for wire and sink erosion applications, these filters offer reliable performance and consistent results, meeting stringent industry standards for filtration.

Product Specifications

Note 0

For wire and sink erosion.For Dimension d2 in mm:Connection dimension according to D N EN 10 305.

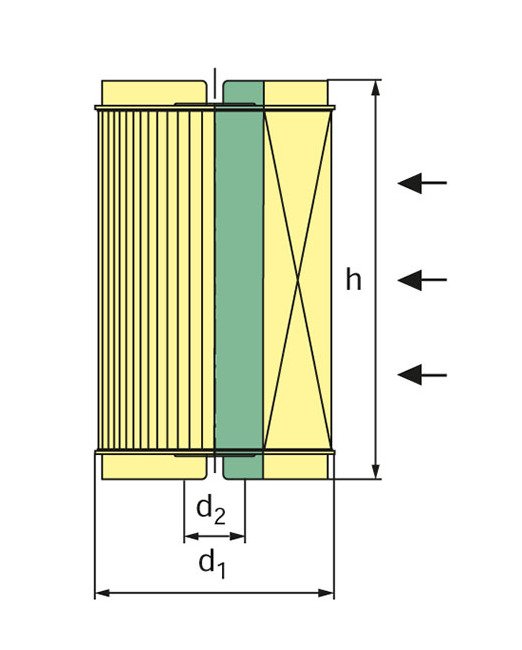

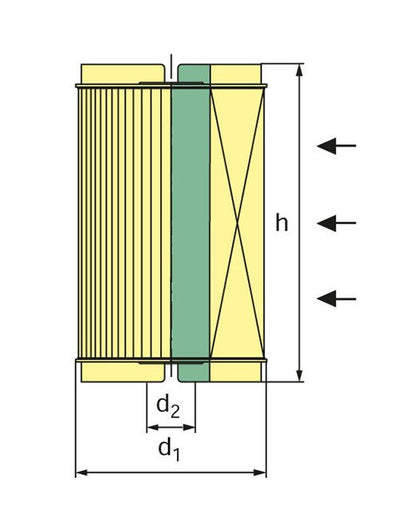

Specifications Design

Specifications Diameter

Up to 150 mm

Specifications Dimension D1

5.9 in | 150 mm

Specifications Dimension D2

0.9 in | 22 mm

Specifications Dimension H

14.8 in | 375 mm

Specifications Filter Fineness

3 to 5 µm

Specifications Filter Surface Area

29 ft² | 27000 cm²

Specifications Flow Direction

Outside to Inside

Specifications Material

Plastic
