MANN + HUMMEL EDM Filters - High-Performance Filtration for Precision Machining

Name: MANN + HUMMEL EDM Filters - High-Performance Filtration for Precision Machining
Brand: EDM Sales & Supplies, Inc.
SKU: MAN-d1d41a
Price: 149.99 USD
Availability: OutOfStock

SKU:MAN-d1d41a

High-performance EDM filters for precision machining applications. Optimal filtration efficiency with a large surface area and fine filter fineness.

$149.99

Sale

Quantity

Delivery via Maden

Expect your order to arrive on time.

Secure Payments

All orders are processed through a secure, PCI-compliant checkout.

View full details

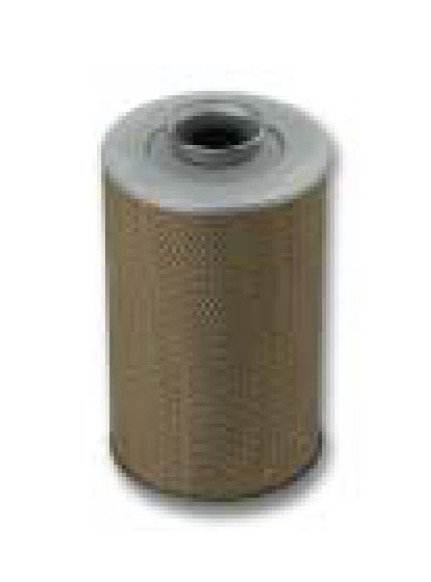

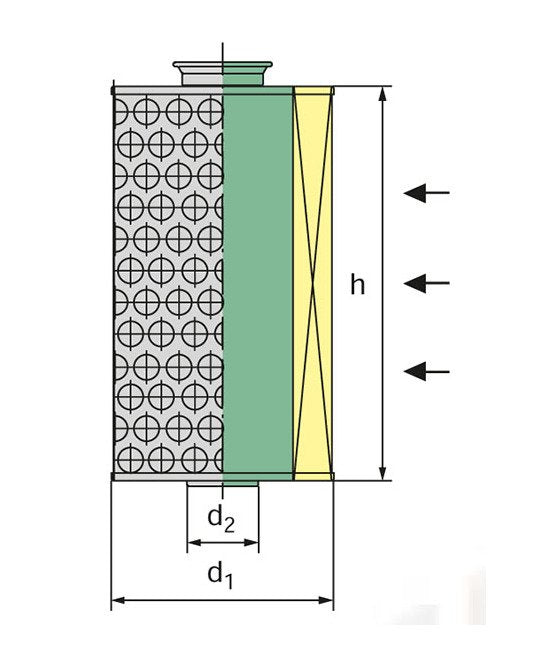

The MANN + HUMMEL Electrical Discharge Machining (EDM) Filters are engineered for exceptional performance in wire and sink erosion applications. With a large filter surface area of 23 ft² | 21200 cm² and a filter fineness of 3 to 5 µm, these filters ensure superior filtration efficiency. Designed with metal construction, these filters have dimensions d1: 5.9 in | 150 mm, d2: 0.9 in | 22 mm, and h: 9.9 in | 252 mm. The flow direction from outside to inside optimizes filtration effectiveness, making them ideal for precision machining processes. Compliance with industry standards ensures reliability and quality performance.

Product Specifications

Note 0

For wire and sink erosion.For Dimension d2 in mm:Connection dimension according to D N EN 10 305.

Specifications Design

Specifications Diameter

Up to 150 mm

Specifications Dimension D1

5.9 in | 150 mm

Specifications Dimension D2

0.9 in | 22 mm

Specifications Dimension H

9.9 in | 252 mm

Specifications Filter Fineness

3 to 5 µm

Specifications Filter Surface Area

23 ft² | 21200 cm²

Specifications Flow Direction

Outside to Inside

Specifications Material

Metal
