MANN + HUMMEL EDM Filters - High-Precision Metal Filters for Electrical Discharge Machining

Name: MANN + HUMMEL EDM Filters - High-Precision Metal Filters for Electrical Discharge Machining
Brand: EDM Sales & Supplies, Inc.
SKU: MAN-e4d12d
Price: 89.99 USD
Availability: OutOfStock

SKU:MAN-e4d12d

Discover precision and efficiency with MANN + HUMMEL EDM Filters. Maximize your EDM process with high-quality metal filters.

$89.99

Sale

Quantity

Delivery via Maden

Expect your order to arrive on time.

Secure Payments

All orders are processed through a secure, PCI-compliant checkout.

View full details

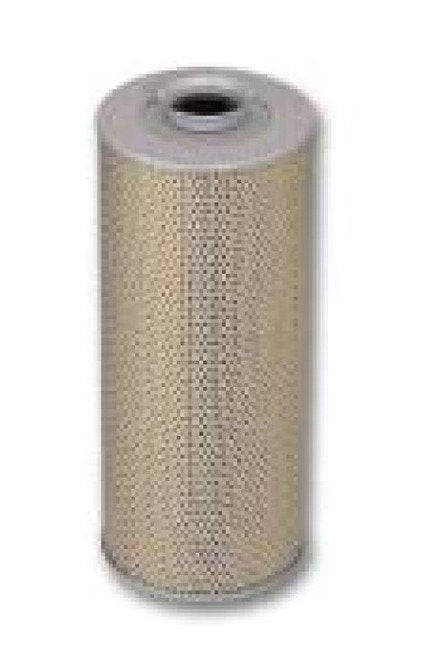

Enhance your EDM process with MANN + HUMMEL Electrical Discharge Machining (EDM) Filters. Designed with precision, these filters offer a large surface area of 22 ft² | 20500 cm² and a filter fineness of 10 µm. The flow direction from outside to inside ensures optimal filtration efficiency. Made of high-quality metal, these filters are suitable for wire and sink erosion applications. Meet your machining needs with confidence using MANN + HUMMEL EDM Filters.

Product Specifications

Note 0

For wire and sink erosion.For Dimension d2 in mm:Connection dimension according to D N EN 10 305.

Specifications Design

Specifications Diameter

Up to 150 mm

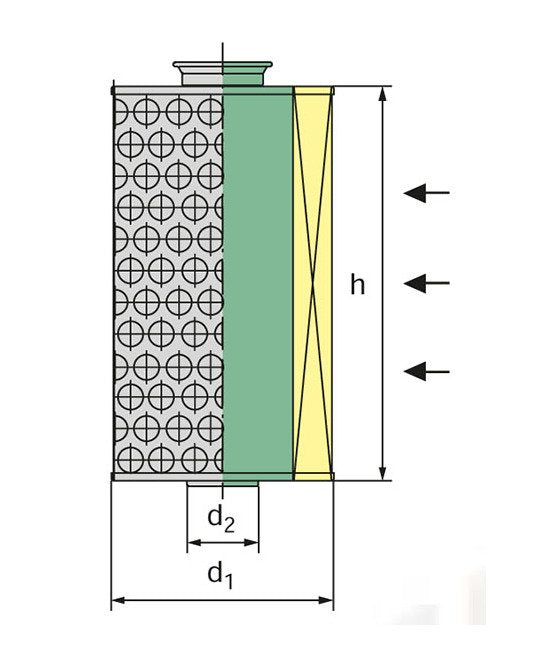

Specifications Dimension D1

5.9 in | 150 mm

Specifications Dimension D2

0.9 in | 22 mm

Specifications Dimension H

14.3 in | 364 mm

Specifications Filter Fineness

10 µm

Specifications Filter Surface Area

22 ft² | 20500 cm²

Specifications Flow Direction

Outside to Inside

Specifications Material

Metal
