MANN + HUMMEL EDM Filters - Precision Filtration for Electrical Discharge Machining

Name: MANN + HUMMEL EDM Filters - Precision Filtration for Electrical Discharge Machining
Brand: EDM Sales & Supplies, Inc.
SKU: MAN-b85d0d
Price: 99.99 USD
Availability: OutOfStock

SKU:MAN-b85d0d

Enhance EDM precision with MANN + HUMMEL EDM Filters. High efficiency, durable plastic material, compliance with Federal standards.

$99.99

Sale

Quantity

Delivery via Maden

Expect your order to arrive on time.

Secure Payments

All orders are processed through a secure, PCI-compliant checkout.

View full details

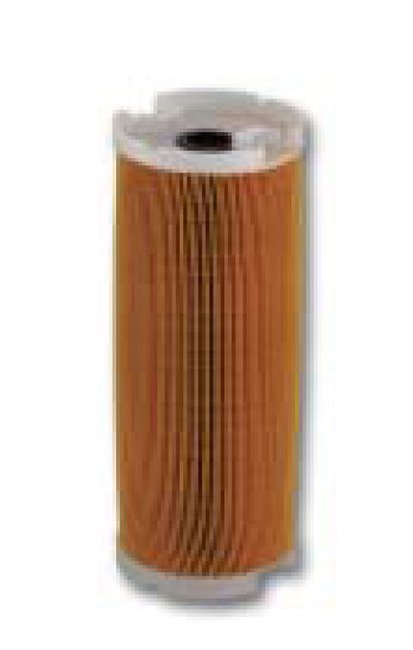

Ensure optimal performance and longevity for your EDM operations with MANN + HUMMEL Electrical Discharge Machining (EDM) Filters. Featuring a high Filter Surface Area of 30 ft² | 27520 cm² and Filter Fineness of 10 µm, these filters excel at capturing impurities to enhance cutting precision. The Flow Direction from Outside to Inside ensures efficient filtration, while the durable Plastic material guarantees reliability. Compliant with Federal/DoD procurement standards and ideal for wire and sink erosion applications, these filters deliver superior quality and performance for industrial settings.

Product Specifications

Note 0

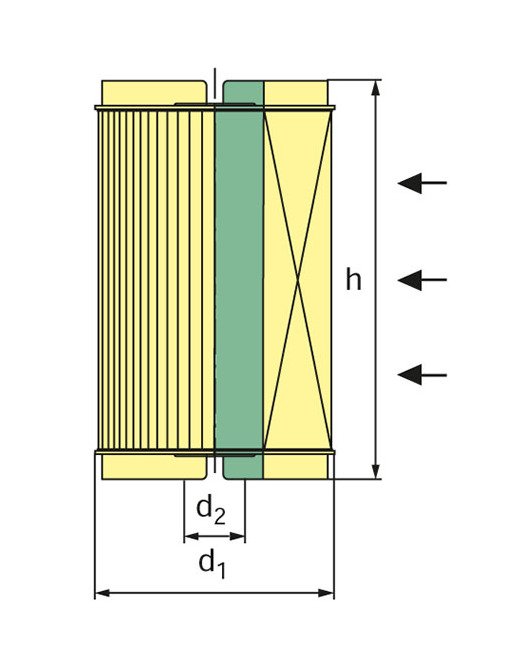

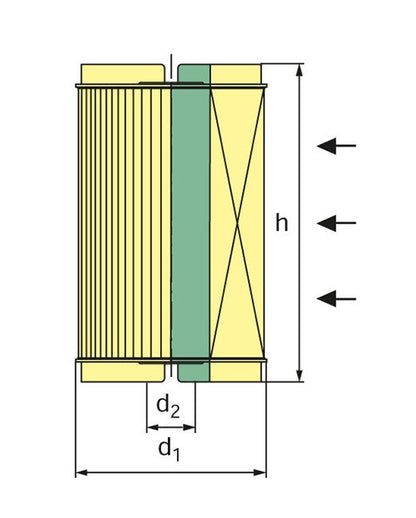

For wire and sink erosion.For Dimension d2 in mm:Connection dimension according to D N EN 10 305.

Specifications Design

Specifications Diameter

Up to 150 mm

Specifications Dimension D1

5.9 in | 150 mm

Specifications Dimension D2

0.9 in | 22 mm

Specifications Dimension H

14.8 in | 375 mm

Specifications Filter Fineness

10 µm

Specifications Filter Surface Area

30 ft² | 27520 cm²

Specifications Flow Direction

Outside to Inside

Specifications Material

Plastic
