MANN + HUMMEL EDM Filters with 33 ft² Surface Area

Name: MANN + HUMMEL EDM Filters with 33 ft² Surface Area
Brand: EDM Sales & Supplies, Inc.
SKU: MAN-783ec8
Price: 129.99 USD
Availability: OutOfStock

SKU:MAN-783ec8

Enhance EDM operations with MANN + HUMMEL EDM Filters. Large surface area, precise filtration (3-5 µm), durable plastic material.

$129.99

Sale

Quantity

Delivery via Maden

Expect your order to arrive on time.

Secure Payments

All orders are processed through a secure, PCI-compliant checkout.

View full details

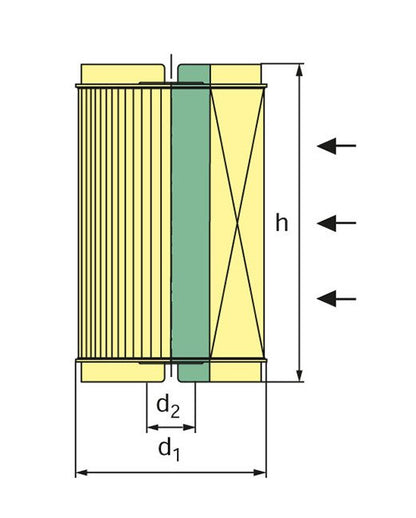

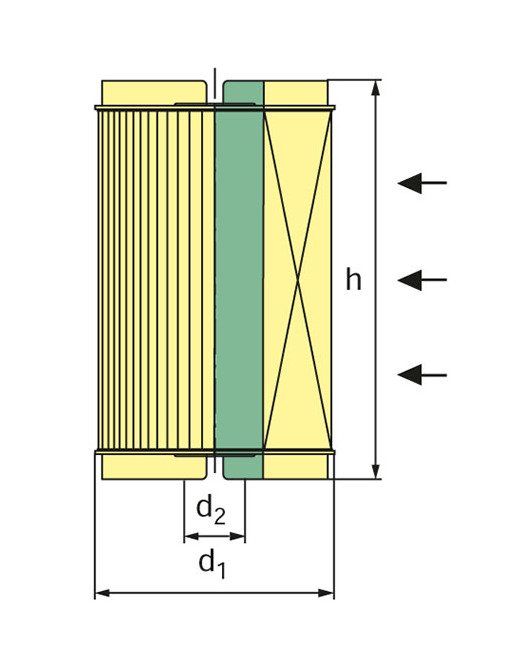

Enhance your EDM operations with MANN + HUMMEL Electrical Discharge Machining (EDM) Filters. Featuring a design for wire and sink erosion, these filters offer a large filter surface area of 33 ft² | 31000 cm² and a filter fineness of 3 to 5 µm. With dimensions d1 of 5.9 in | 150 mm, d2 of 0.9 in | 22 mm, and h of 14.8 in | 375 mm, these filters ensure efficient flow direction from outside to inside. Made of durable plastic, they meet industry standards for precision and reliability.

Product Specifications

Note 0

For wire and sink erosion.For Dimension d2 in mm:Connection dimension according to D N EN 10 305.

Specifications Design

Specifications Diameter

Up to 150 mm

Specifications Dimension D1

5.9 in | 150 mm

Specifications Dimension D2

0.9 in | 22 mm

Specifications Dimension H

14.8 in | 375 mm

Specifications Filter Fineness

3 to 5 µm

Specifications Filter Surface Area

33 ft² | 31000 cm²

Specifications Flow Direction

Outside to Inside

Specifications Material

Plastic

MANN + HUMMEL EDM Filters with 33 ft² Surface Area
