MANN + HUMMEL EDM Filters with 51 ft² Filter Surface Area
MANN + HUMMEL EDM Filters with 51 ft² Filter Surface Area
SKU:MAN-b61ca2
High-performance MANN + HUMMEL EDM Filters for precise wire and sink erosion applications. 51 ft² Surface Area, 3-5 µm Fineness.
Regular price
$129.99
Regular price
Sale price
$129.99
Unit price
per
Initiate Order
MANN + HUMMEL EDM Filters with 51 ft² Filter Surface Area
$129.99
Quantity: 1
Claim Your Seller Account
MANN + HUMMEL EDM Filters with 51 ft² Filter Surface Area
$129.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.

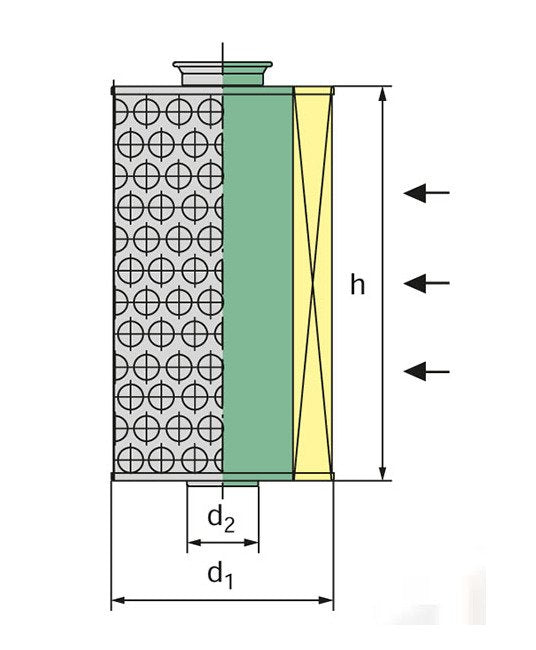

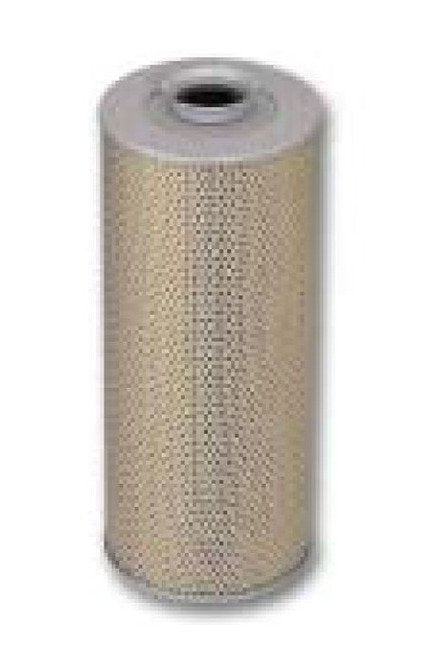

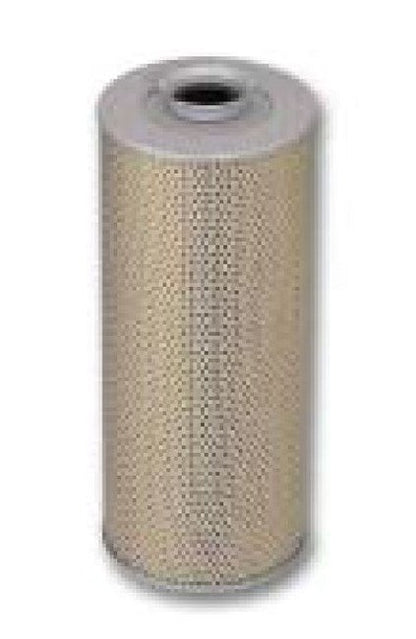

The MANN + HUMMEL Electrical Discharge Machining (EDM) Filters are designed for wire and sink erosion applications in EDM processes. With a substantial filter surface area of 51 ft² | 47000 cm², these filters ensure efficient filtration with a filter fineness of 3 to 5 µm. Constructed from high-quality metal, these filters have dimensions d1 of 5.9 in | 150 mm, d2 of 0.9 in | 22 mm, and h of 14.3 in | 364 mm. The flow direction is optimized from outside to inside for enhanced performance. These filters meet industry-specific certifications and are compliant with relevant institutional procurement standards, making them a reliable choice for your EDM filtration needs.
Product Specifications
Note 0
For wire and sink erosion.For Dimension d2 in mm:Connection dimension according to D N EN 10 305.
Specifications Design
B
Specifications Diameter
Up to 150 mm
Specifications Dimension D1
5.9 in | 150 mm
Specifications Dimension D2
0.9 in | 22 mm
Specifications Dimension H
14.3 in | 364 mm
Specifications Filter Fineness
3 to 5 µm
Specifications Filter Surface Area
51 ft² | 47000 cm²
Specifications Flow Direction
Outside to Inside
Specifications Material
Metal
