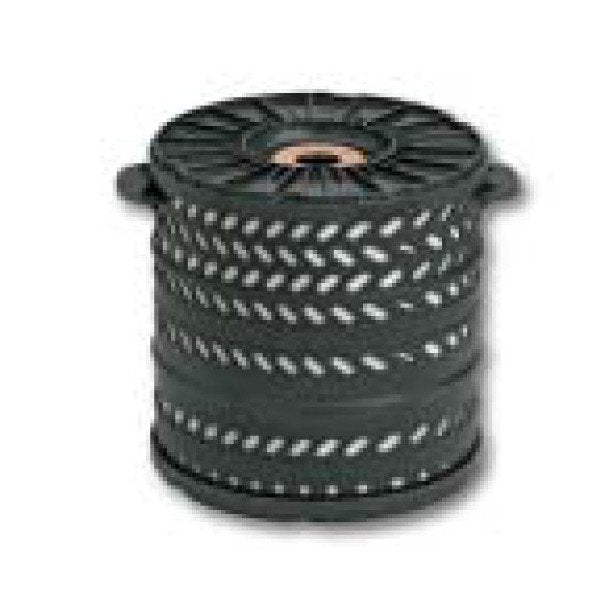

MANN + HUMMEL Long-Life EDM Filters
MANN + HUMMEL Long-Life EDM Filters
SKU:MAN-d89f65
Enhance EDM operations with MANN + HUMMEL Long-Life Filters. Superior filtration, durability, and precision for optimal wire and sink erosion performance.
Regular price
$149.99
Regular price
Sale price
$149.99
Unit price
per
Initiate Order
MANN + HUMMEL Long-Life EDM Filters
$149.99
Quantity: 1
Claim Your Seller Account
MANN + HUMMEL Long-Life EDM Filters
$149.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.

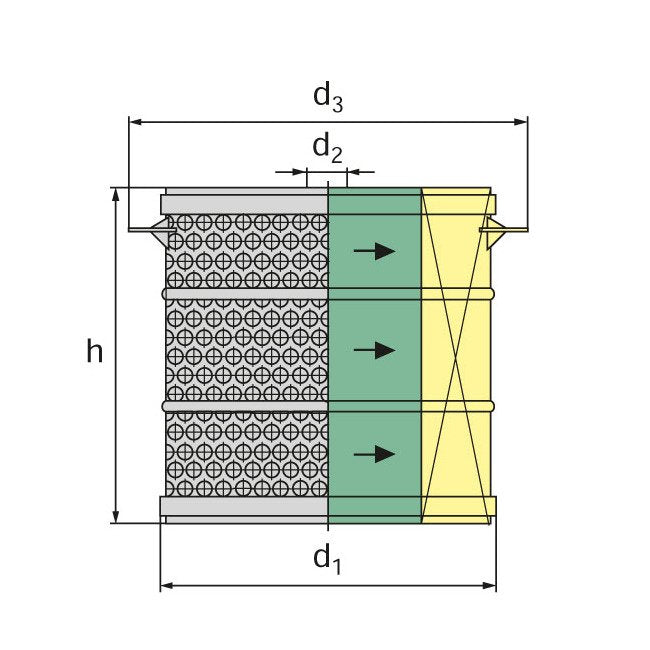

MANN + HUMMEL Long-Life Electrical Discharge Machining (EDM) filters are engineered with a filter surface area of 136 ft² | 126000 cm² and a filter fineness of 3 to 5 µm, ensuring exceptional performance in wire and sink erosion applications. Designed with precision in mind, these filters feature dimensions d1 of 13.4 in | 340 mm, d2 of 1.9 in | 47.5 mm, d3 of 15.9 in | 404 mm, and h of 13.3 in | 339 mm. The flow direction is inside to outside, optimizing filtration efficiency. Crafted from durable plastic, these filters guarantee longevity and reliability in demanding EDM operations.
Product Specifications
Note 0
For wire and sink erosion.
Specifications Design
C
Specifications Dimension D1
13.4 in | 340 mm
Specifications Dimension D2
1.9 in | 47.5 mm
Specifications Dimension D3
15.9 in | 404 mm
Specifications Dimension H
13.3 in | 339 mm
Specifications Filter Fineness
3 to 5 µm
Specifications Filter Surface Area
136 ft² | 126000 cm²
Specifications Flow Direction
Inside to Outside
Specifications Material
Plastic
