MANN + HUMMEL Long-Life EDM Filters

Name: MANN + HUMMEL Long-Life EDM Filters
Brand: EDM Sales & Supplies, Inc.
SKU: MAN-87e907
Price: 99.99 USD
Availability: OutOfStock

SKU:MAN-87e907

Optimize EDM processes with MANN + HUMMEL Long-Life Filters. Durable, efficient, and precise for wire and sink erosion applications.

$99.99

Sale

Quantity

Delivery via Maden

Expect your order to arrive on time.

Secure Payments

All orders are processed through a secure, PCI-compliant checkout.

View full details

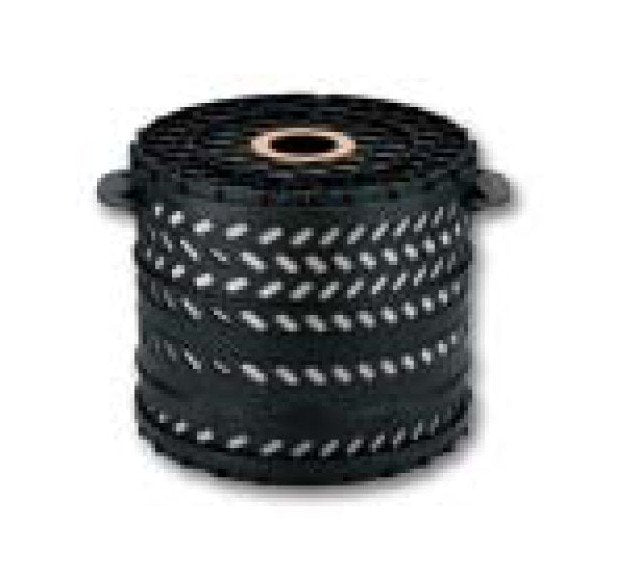

Enhance your electrical discharge machining process with MANN + HUMMEL Long-Life EDM Filters. Designed with a filter surface area of 113 ft² and a filter fineness of 3 to 5 µm, these filters ensure optimal performance. The dimensions and flow direction are tailored for efficient use in EDM applications. Made of high-quality plastic, these filters are ideal for wire and sink erosion, providing durability and reliability in your operations.

Product Specifications

Note 0

For wire and sink erosion.

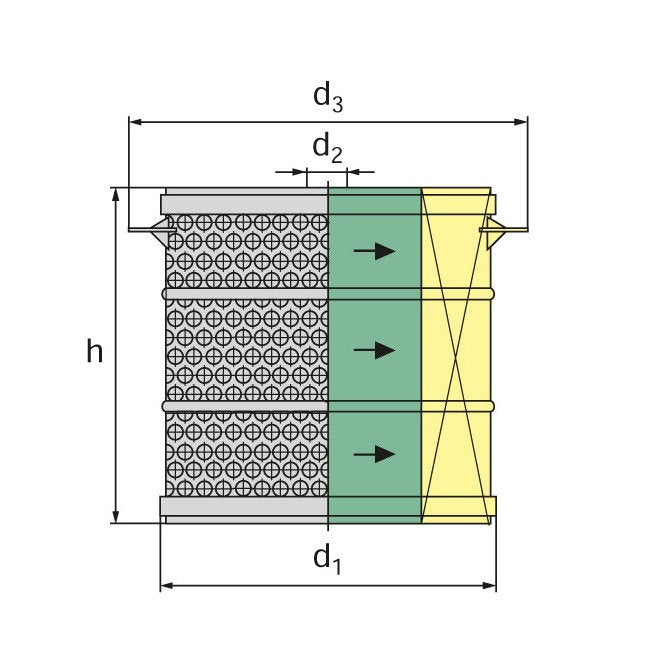

Specifications Design

Specifications Dimension D1

13.4 in | 340 mm

Specifications Dimension D2

2.4 in | 60 mm

Specifications Dimension D3

15.9 in | 404 mm

Specifications Dimension H

11.8 in | 300 mm

Specifications Filter Fineness

3 to 5 µm

Specifications Filter Surface Area

113 ft² | 105000 cm²

Specifications Flow Direction

Inside to Outside

Specifications Material

Plastic

MANN + HUMMEL Long-Life EDM Filters
