MANN + HUMMEL Long-Life EDM Filters

Name: MANN + HUMMEL Long-Life EDM Filters
Brand: EDM Sales & Supplies, Inc.
SKU: MAN-66e32b
Price: 69.99 USD
Availability: OutOfStock

SKU:MAN-66e32b

High-performance MANN + HUMMEL Long-Life EDM Filters for precise wire and sink erosion. Optimal filtration with 25 µm fineness.

$69.99

Sale

Quantity

Delivery via Maden

Expect your order to arrive on time.

Secure Payments

All orders are processed through a secure, PCI-compliant checkout.

View full details

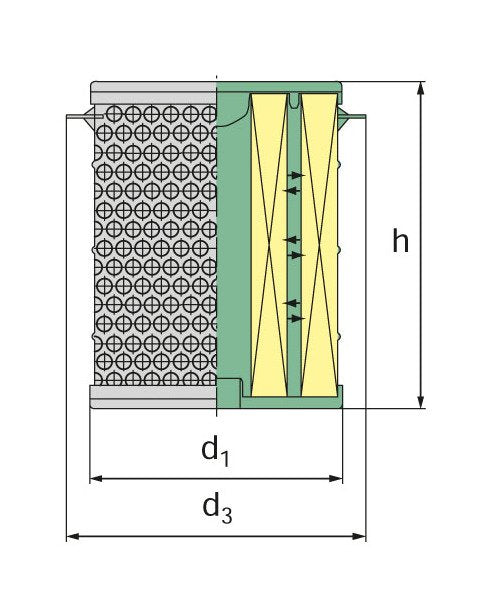

The MANN + HUMMEL Long-Life Electrical Discharge Machining (EDM) Filters are designed with a Filter Surface Area of 110 ft² | 102000 cm² and a Filter Fineness of 25 µm, ensuring optimal performance in wire and sink erosion processes. With dimensions d1 of 13.4 in | 340 mm, d3 of 15.9 in | 404 mm, and h of 11.8 in | 300 mm, these filters offer efficient filtration with a Flow Direction of Inside to Outside. Constructed from high-quality plastic, these filters feature a Connection Thread of G 3/4 in, meeting the stringent requirements of EDM applications.

Product Specifications

Note 0

For wire and sink erosion.

Specifications Connection Thread

G 3/4 in

Specifications Design

Specifications Dimension D1

13.4 in | 340 mm

Specifications Dimension D3

15.9 in | 404 mm

Specifications Dimension H

11.8 in | 300 mm

Specifications Filter Fineness

25 µm

Specifications Filter Surface Area

110 ft² | 102000 cm²

Specifications Flow Direction

Inside to Outside

Specifications Material

Plastic
