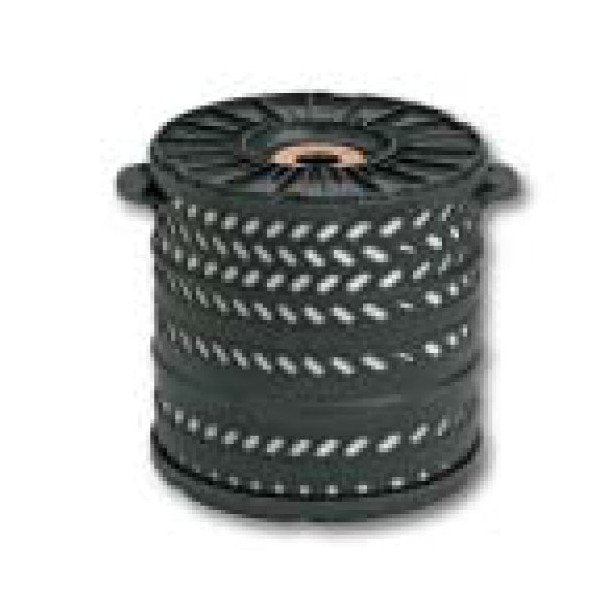

MANN + HUMMEL Long-Life EDM Filters
MANN + HUMMEL Long-Life EDM Filters
SKU:MAN-d89f65
Enhance EDM operations with MANN + HUMMEL Long-Life Filters. Superior filtration, durability, and precision for optimal wire and sink erosion performance.
Regular price
$149.99
Regular price
Sale price
$149.99
Unit price
per
Initiate Order
MANN + HUMMEL Long-Life EDM Filters
$149.99
Quantity: 1
Claim Your Seller Account
MANN + HUMMEL Long-Life EDM Filters
$149.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.

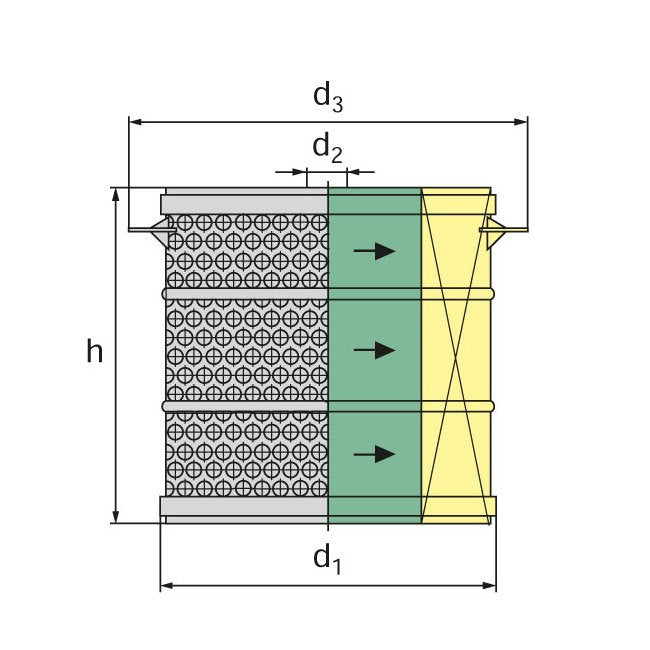

MANN + HUMMEL Long-Life Electrical Discharge Machining (EDM) filters are engineered with a filter surface area of 136 ft² | 126000 cm² and a filter fineness of 3 to 5 µm, ensuring exceptional performance in wire and sink erosion applications. Designed with precision in mind, these filters feature dimensions d1 of 13.4 in | 340 mm, d2 of 1.9 in | 47.5 mm, d3 of 15.9 in | 404 mm, and h of 13.3 in | 339 mm. The flow direction is inside to outside, optimizing filtration efficiency. Crafted from durable plastic, these filters guarantee longevity and reliability in demanding EDM operations.
Ready to Grow Without Cash Flow Constraints?
Product Specifications
Note 0
For wire and sink erosion.
Specifications Design
C
Specifications Dimension D1
13.4 in | 340 mm
Specifications Dimension D2
1.9 in | 47.5 mm
Specifications Dimension D3
15.9 in | 404 mm
Specifications Dimension H
13.3 in | 339 mm
Specifications Filter Fineness
3 to 5 µm
Specifications Filter Surface Area
136 ft² | 126000 cm²
Specifications Flow Direction
Inside to Outside
Specifications Material
Plastic
