MANN + HUMMEL Long-Life EDM Filters

Name: MANN + HUMMEL Long-Life EDM Filters
Brand: EDM Sales & Supplies, Inc.
SKU: MAN-4158c3
Price: 79.99 USD
Availability: OutOfStock

SKU:MAN-4158c3

High-performance MANN + HUMMEL Long-Life EDM Filters for precise filtration in wire and sink erosion processes.

$79.99

Sale

Quantity

Delivery via Maden

Expect your order to arrive on time.

Secure Payments

All orders are processed through a secure, PCI-compliant checkout.

View full details

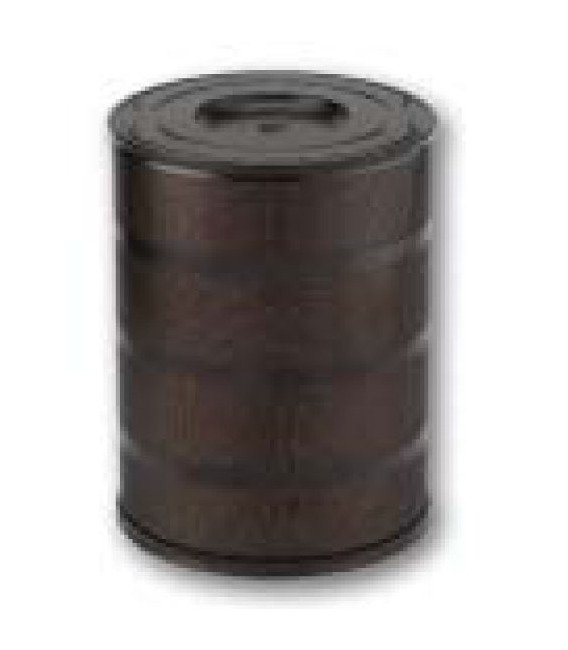

The MANN + HUMMEL Long-Life Electrical Discharge Machining (EDM) Filters are engineered for exceptional performance and durability. With a filter surface area of 241 ft² | 224000 cm² and a filter fineness of 3 to 5 µm, these filters ensure precise filtration for wire and sink erosion processes. Designed with a flow direction of Inside to Outside and made from corrosion-resistant metal, these filters guarantee optimal efficiency and longevity, making them a reliable choice for industrial applications.

Product Specifications

Note 0

For wire and sink erosion.Painted in black corrosion resistant.

Specifications Connection Thread

G 3/4 in

Specifications Design

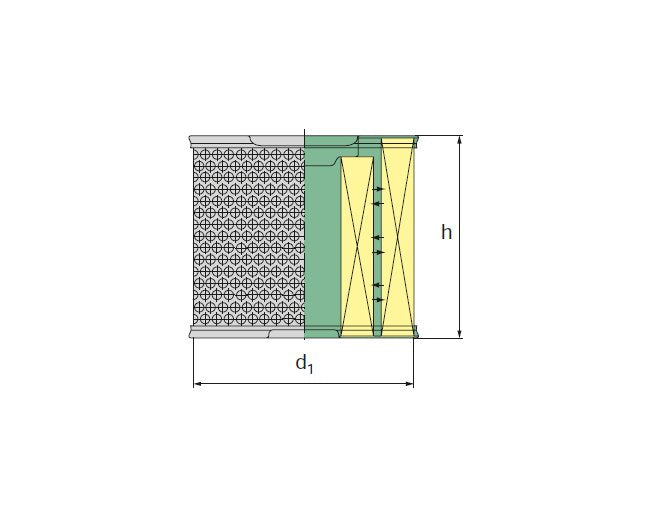

Specifications Dimension D1

13.4 in | 340 mm

Specifications Dimension H

17.7 in | 450 mm

Specifications Filter Fineness

3 to 5 µm

Specifications Filter Surface Area

241 ft² | 224000 cm²

Specifications Flow Direction

Inside to Outside

Specifications Material

Metal
