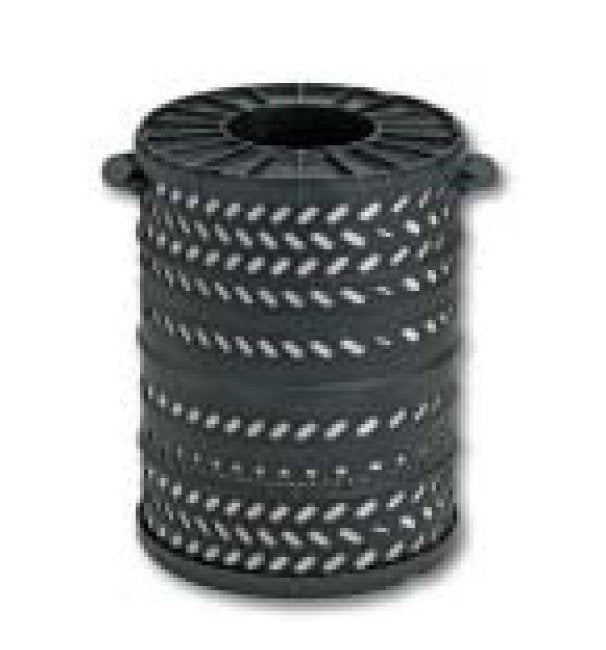

MANN + HUMMEL Long-Life EDM Filters

Name: MANN + HUMMEL Long-Life EDM Filters
Brand: EDM Sales & Supplies, Inc.
SKU: MAN-6c190c
Price: 49.99 USD
Availability: OutOfStock

SKU:MAN-6c190c

Enhance EDM operations with durable MANN + HUMMEL Long-Life EDM Filters. Superior performance for wire and sink erosion.

$49.99

Sale

Quantity

Delivery via Maden

Expect your order to arrive on time.

Secure Payments

All orders are processed through a secure, PCI-compliant checkout.

View full details

Upgrade your EDM operations with MANN + HUMMEL Long-Life Electrical Discharge Machining (EDM) Filters. Designed with a 183 ft² filter surface area and a filter fineness of 3 to 5 µm, these filters ensure superior performance and longevity. The flow direction from inside to outside maximizes filtration efficiency, while the use of high-quality plastic guarantees durability. Ideal for wire and sink erosion processes, these filters offer reliable and precise filtration for your machining needs.

Product Specifications

Note 0

For wire and sink erosion.

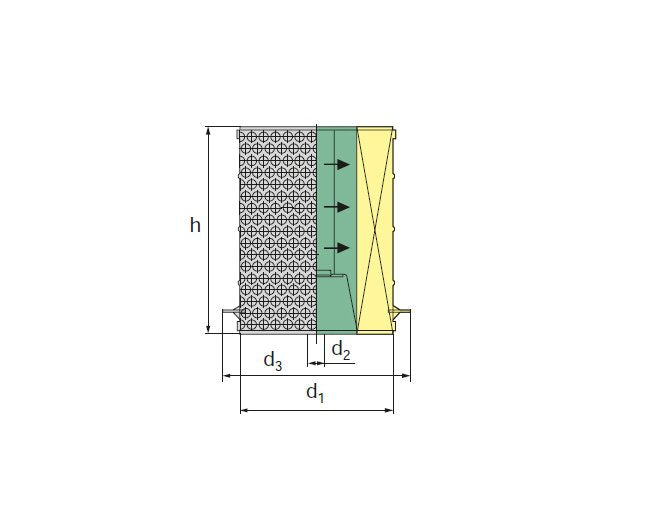

Specifications Design

Specifications Dimension D1

13.4 in | 340 mm

Specifications Dimension D2

1.9 in | 47.5 mm

Specifications Dimension D3

15.9 in | 404 mm

Specifications Dimension H

17.7 in | 450 mm

Specifications Filter Fineness

3 to 5 µm

Specifications Filter Surface Area

183 ft² | 170000 cm²

Specifications Flow Direction

Inside to Outside

Specifications Material

Plastic

MANN + HUMMEL Long-Life EDM Filters
